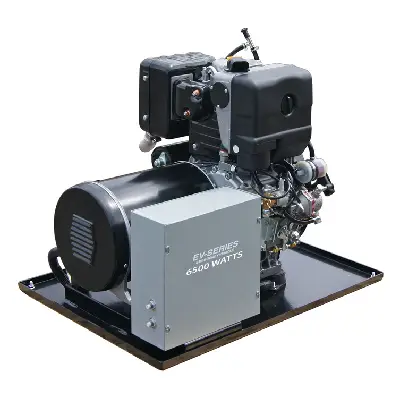

Gillette 6kW Single Phase Truck Mounted Diesel Generator EVTD-65EK
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
questions? Call US
(866) 888 6111
Accessories
No products are linked on our website, but chances are we sell accessories for this product
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
Loading...
Additional information
| Manufacturer | Gillette |
|---|---|
| MPN | EVTD-65EK |
| Capability | Sell, Service |
| Cooling System | Air Cooled |
| Frequency Hz | 60 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://gillettegenerators.com/generators/portable/evtd-65ek/ |
| Product Applications | Commercial / Industrial Power, Food Truck, Hurricane and Storms |
| Gen/Power Rating | Both |
| Housing | Closed |
| Phase AC | 1PH |
| Power Type | Conventional |
| Voltage VAC | 120/240 |
Tech Notes
| GENERATOR MODEL |
EVTD-65EK |
| MAXIMUM KILOWATTS | 6.5 |
| PRIME KILOWATTS | 6 |
| PRIME AMPS 120 /240 V. | 42/21 |
| BRUSHLESS GEN./REG | 5 % VOLTAGE REGULATION FROM NAME PLATE RATING ON ALL POWER-PRO GEN-SETS |
| FREQUENCY REG | 5% FREQUENCY REGULATION FROM NAMEPLATE RATING ON ALL “EV” SERIES SETS |
| “KLEEN-POWER”™ | WAVEFORM DISTORTION IS LIMITED TO JUST 7 % ON ALL “EV” GEN-SETS |
| ENGINE BRAND AND HP AT 3600 RPM. |
KOHLER (KD440) 10 HP |
| ENGINE START | ELECTRIC ONLY |
| ENG. CU. CENTIMETERS | 420 |
| FULL PRESSURE OIL LUB. | YES |
| SPIN-ON OIL FILTER | YES |
| LOW OIL SHUTDOWN | STANDARD ENGINE SHUTDOWN PROTECTION FOR ALL “EV” SERIES SETS |
| FUEL USE, GAL./HOUR | 0.52 |
| FUEL TANK | FUEL TANK IS REMOVED FROM STATIONARY SETS. |
| CODE G ELECTRIC MOTOR START POWER IN HP RATING |
1 1/2 HP |
| RECEPTACLE PANEL COMPONENTS | BLANK PANEL WITH NO RECEPTACLES. A LOAD TERMINAL STRIP IS INCLUDED FOR POWER TAKE-OFF, AND (2) 25 AMP PUSH BUTTON CIRCUIT BREAKERS. |
| LENGTH, INCHES | 27 |
| WIDTH, INCHES | 20 |
| HEIGHT, INCHES | 23 |
| NET WEIGHT, LBS. | 205 |
| SHIP WEIGHT, LBS. | 222 |
