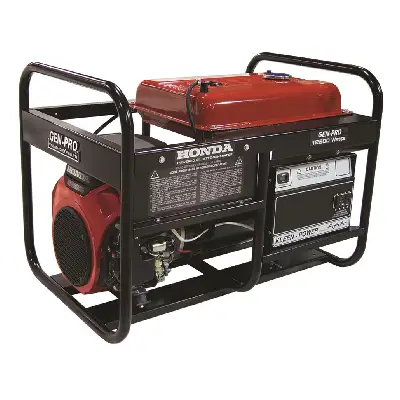

Gillette 12.5kW Three Phase Portable Generator GPE-125EH-3

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 302647 Category: Portables

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Additional information

Manufacturer	Gillette
MPN	GPE-125EH-3
Capability	Sell, Service
Cooling System	Air Cooled
Frequency Hz	60
Fuel Tank Run Time (hrs)	4
Fuel Type	Gasoline
Manufacturers Website Link	https://gillettegenerators.com/generators/portable/gpe-125eh-3/
Product Applications	Commercial / Industrial Power, Food Truck, Hurricane and Storms
Gen/Power Rating	Prime / Continuous
Housing	Open
Phase AC	3PH
Power Type	Conventional
Voltage VAC	Varies

Reviews

There are no reviews yet.

Be the first to review “Gillette 12.5kW Three Phase Portable Generator GPE-125EH-3”

Downloads

Gillette GPE-125EH-3 Single Phase Portable Generator Spec Sheet

Tech Notes

GENERATOR MODEL	GPE-125EH
MAX. KW @ 3 PH.	12
PRIME KW @ 3 PH.	12.5
PRIME KW @ 3 PH. 0.8 P.F.	10
PRIME AMPS @ 208 V. (-3-2)	35
PRIME AMPS @ 240 V. (-3-3)	30
PRIME AMPS @ 480 V. (-3-4)	15
GENERATOR REGULATION	2.5% VOLTAGE REGULATION ON THREE PHASE GEN-SETS.
FREQUENCY REGULATION	5%, (3 HERTZ) FREQUENCY REGULATION FROM NAME PLATE RATING
“KLEEN-POWER”™	ELECTRICAL WAVEFORM DISTORTION IS LIMITED TO JUST 6 % ON ALL GEN- PRO GEN-SETS
ENGINE MODEL (WARRANTY)	HONDA GX630 V-TWIN O.H.V. (3 YEARS)
ENGINE START METHOD	12VDC ELECTRIC ONLY
ENGINE HP @ 3600 RPM	22 HP
ENGINE DISPLACEMENT	2 CYLINDER, 41.97 CU. IN. (688 CC)
ENGINE AIR CLEANER	HEAVY DUTY, LOW PROFILE, DUAL ELEMENT FILTERS
ENGINE FUEL TANK	8 GAL. (30.2 L.) METAL FUEL TANK WITH GAUGE, TWIST-CAP, & SLOSH VALVE
ENGINE OIL SYSTEM	FULL PRESSURE W/ SPIN ON OIL FILTER
LOW OIL PROTECTION	AUTOMATIC ENGINE SHUTDOWN PROTECTION AT LOW OIL LEVEL
db(A) AT 7 METERS	86
3/4 LOAD RUN TIME (HRS)	6.1
FUEL USE, GAL/LTR/HR	1.3 / 4.92
MOTOR START POWER	5 HP, CODE G ELECTRIC MOTOR
CRANE PICK-UP HOOK	OPTIONAL EQUIPMENT : CENTRAL PICK-UP ON TOP OF GEN-SET
2-WHEEL DOLLY KIT	OPTIONAL EQUIPMENT : COMPLETE WITH (2) HANDLES AND “NEVER GO FLAT” WHEELS
MAINLINE CB	STANDARD 3 POLE MAG CIRCUIT BREAKER – 40A @ 208V, 35A @ 240V, & 20A @ 480V
HOUR METER	RUN TIME HOURS, PLUS (3) MAINTENANCE ALERTS: 25 HOUR CHANGE OIL, 25 HOUR CHANGE OIL FILTER, 25 HOUR SERVICE AIR FILTER
POWER TAKE OFF	POWER TAKE OFF 4 POSITION TERMINAL STRIP
PROTECTIVE ROLL FRAME	RUGGED 1-1/4” ROUND ROLL FRAME, PROTECTING ENTIRE GEN-SET
LENGTH, INCHES	38
WIDTH, INCHES	26
HEIGHT, INCHES	28
SHIP WEIGHT, LBS.	330
CU. FEET SHIP BOX	20
