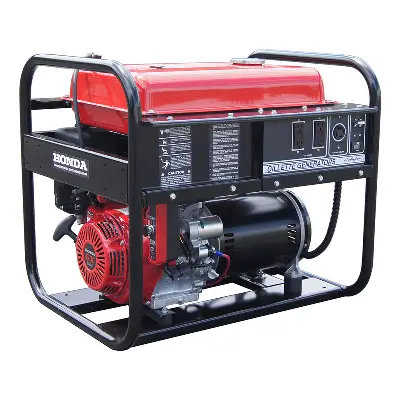

Gillette 7.5kW Single Phase Portable Generator GPE-75EH

Request Quote

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

questions? Call US

(866) 888 6111

SKU: 302644 Category:

Accessories

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Loading...

Additional information

Manufacturer

Gillette

MPN

GPE-75EH

Capability

Sell, Service

Cooling System

Air Cooled

Frequency Hz

60

Fuel Tank Run Time (hrs)

5.6

Fuel Type

Gasoline

Product Applications

Commercial / Industrial Power, Food Truck, Hurricane and Storms

Gen/Power Rating

Prime / Continuous

Housing

Open

Phase AC

1PH

Power Type

Conventional

Voltage VAC

120/240

Reviews

There are no reviews yet.

Be the first to review “Gillette 7.5kW Single Phase Portable Generator GPE-75EH”

Your email address will not be published. Required fields are marked *

Tech Notes

GENERATOR MODEL GPE-75EH
MAX. KW @ 1 PH. 7.5
PRIME KW @ 1 PH. 6.5
PRIME AMPS @ 120 V. 54
PRIME AMPS @ 240 V. 27
GENERATOR REGULATION 5 % VOLTAGE REGULATION ON SINGLE PHASE GEN-SETS.
FREQUENCY REGULATION 5 %, (3 HERTZ) FREQUENCY REGULATION FROM NAME PLATE RATING
“KLEEN-POWER”™ ELECTRICAL WAVEFORM DISTORTION IS LIMITED TO JUST 6 % ON ALL GEN- PRO GEN-SETS
ENGINE MODEL (WARRANTY) HONDA GX390 O.H.V. (3 YEARS)
ENGINE START METHOD 12VDC ELECTRIC & ROPE RECOIL
ENGINE HP @ 3600 RPM 13 HP
ENGINE DISPLACEMENT 1 CYLINDER, 23.7 CU. IN. (390 CC)
ENGINE AIR CLEANER HEAVY DUTY, LOW PROFILE, DUAL ELEMENT FILTERS
ENGINE FUEL TANK 8 GAL. (30.2 L.) METAL FUEL TANK WITH GAUGE, TWIST-CAP, & SLOSH VALVE
ENGINE OIL SYSTEM FORCED SPLASH
LOW OIL PROTECTION AUTOMATIC ENGINE SHUTDOWN PROTECTION AT LOW OIL LEVEL
db(A) AT 7 METERS 78
3/4 LOAD RUN TIME (HRS) 8.4
FUEL USE, GAL/LTR/HR 0.95 / 3.56
MOTOR START POWER 2 1/2 HP, CODE G ELECTRIC MOTOR
CRANE PICK-UP HOOK OPTIONAL EQUIPMENT : CENTRAL PICK-UP ON TOP OF GEN-SET
2-WHEEL DOLLY KIT OPTIONAL EQUIPMENT : COMPLETE WITH (2) HANDLES AND “NEVER GO FLAT” WHEELS
MAINLINE CB 30 AMP, 2 POLE MAGNETIC MAIN LINE CIRCUIT BREAKER
HOUR METER RUN TIME HOURS, PLUS (3) MAINTENANCE ALERTS: 25 HOUR CHANGE OIL, 25 HOUR CHANGE OIL FILTER, 25 HOUR SERVICE AIR FILTER
POWER RECEPTACLES (4) NEMA 5-15R 120 VOLTS, AND (1) L-14-30R 240 VOLTS RECEPTACLES
PROTECTIVE ROLL FRAME RUGGED 1-1/4” ROUND ROLL FRAME, PROTECTING ENTIRE GEN-SET
LENGTH, INCHES 31
WIDTH, INCHES 25
HEIGHT, INCHES 27.5
SHIP WEIGHT, LBS. 277
CU. FEET SHIP BOX 20
