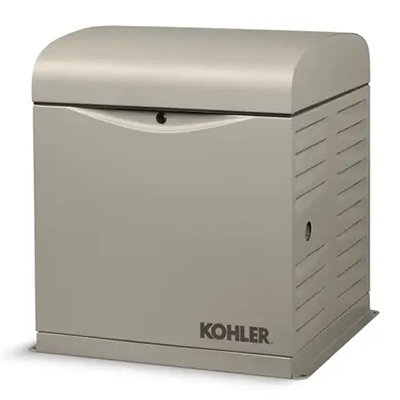

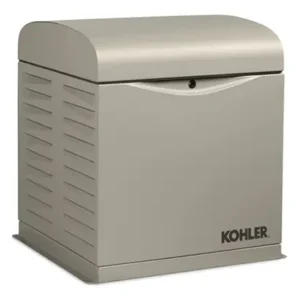

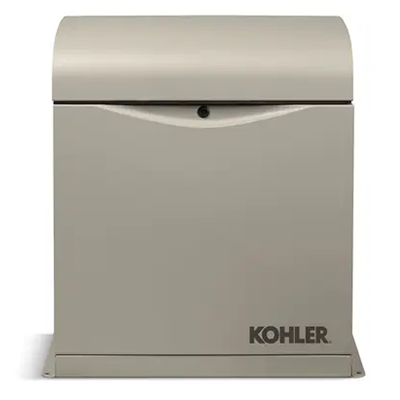

Kohler Home Generator 10RESV, 1 PH, 240V, cUL/US, CSA LCB (Amp) 50 Home Generator 10RESV-QS8

$3,475.00

questions? Call US

(866) 888 6111

SKU: 300267 Category:

Accessories

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Loading...

Description

Kohler 10RESV, 1 PH, 240V, cUL/US, CSA LCB (Amp) 50

Additional information

Manufacturer

Kohler

MPN

10RESV-QS8

Capability

Install, Sell, Service

Cooling System

Air Cooled

Certification

UL

Frequency Hz

60

Fuel Type

Dual Fuel (NG/LP)

Product Applications

Commercial / Industrial Power, Residential

Gen/Power Rating

Standby / Intermittent

Housing

Closed

kW

10

Main Line Circuit Breaker Size MCB (Amps)

50

Phase AC

1PH

Power Type

Conventional

Voltage VAC

120/240

Voltage VDC

12

Watts

10000

Reviews

There are no reviews yet.

Be the first to review “Kohler Home Generator 10RESV, 1 PH, 240V, cUL/US, CSA LCB (Amp) 50 Home Generator 10RESV-QS8”

Your email address will not be published. Required fields are marked *

Tech Notes

Rated kW LP 10 kW
Rated kW NG 9 kW
Amps LP 41.7 amps
Amps NG 37.5 amps
Peak Motor Starting kVA @240 V 16.8 kVa
Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement 725 cm3 (44 cu. in.)
Horsepower NG 18 HP, LP 21.4 HP
Enclosure Material Steel
Sound Output During Weekly Exercise 67 dB(A)
Sound Output During Full-speed Operation 71 dB(A)
Response Time 10 seconds
Warranty Premium five-year limited warranty
Country of Origin US
Certifications/Listings EPA|CSA|UL 2200|cUL
Automatic Transfer Switch Included No
Remote Monitoring Available Included
Off Grid / Utility Backup Utility Backup
Weight 428 lbs.
Alternator Type 2-Pole, Rotating Field
Fuel Consumption on NG at 50% load? 120 cfh
Fuel Consumption on LP at 50% load? 52 cfh
Controller RDC2 Digital Controller
Cylinder Arrangement V-2
Dimensions 777mm x 712mm x 824mm (30.6 in. x 28 in. x 32.4 in.)
Engine Manufacturer/Description KOHLER
Engine Model KT725
Engine/Alternator RPM 3600
Fuel Type LPG|Natural Gas
Frequency 60 Hz
Phase Single Phase
Voltage @ 60 Hz 120/240
Digital Voltage Regulation ±1.0%
Built in Mounting Pad Yes
  • RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
  • Accepts natural gas fuel pressure as low as 3.5 inches
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Meets 181 mph wind rating
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
