Victron Energy LiFePO4 Battery 12,8V/160Ah Smart Litium Battery BAT512116610

Victron LiFePO4 Battery 12,8V/160Ah Smart BAT512116610

***Discontinued***
Replaced by: BAT512118610
Click Here!
With integrated cell balancing
Can be parallel and series connected

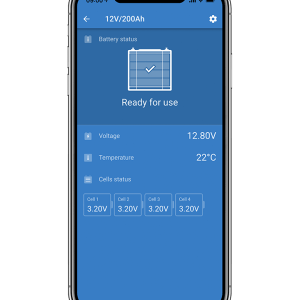

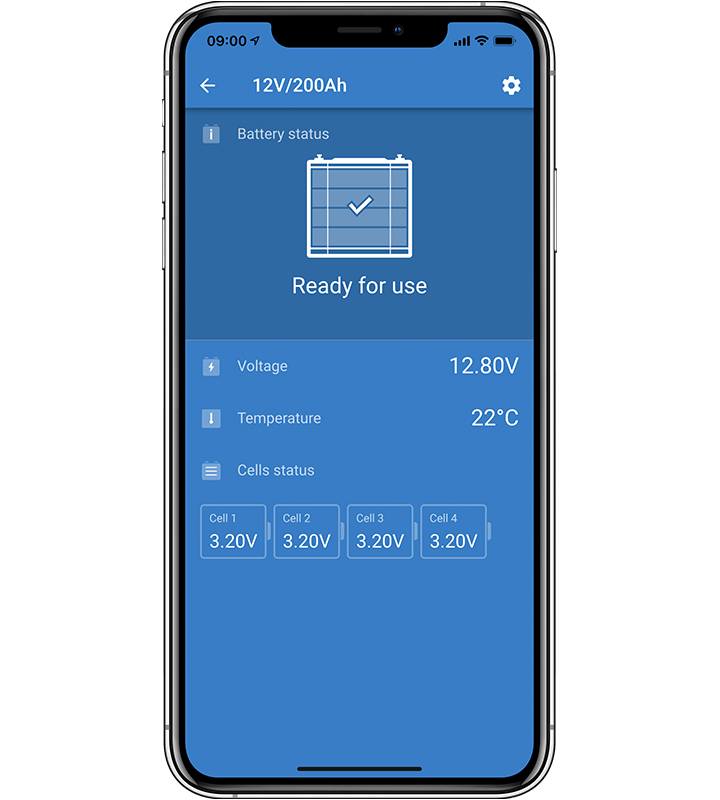

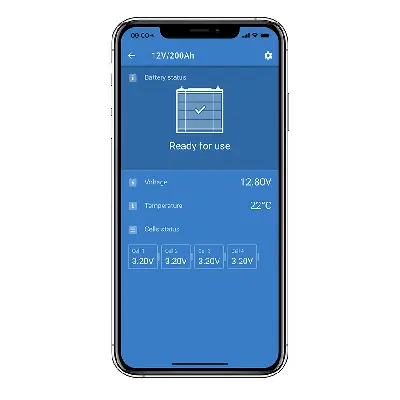

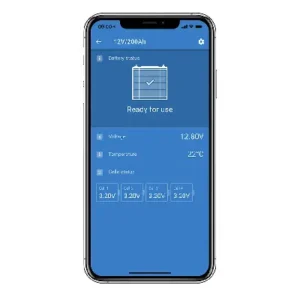

Bluetooth app available to monitor cell voltage and temperature

Requires one of these BMS-es:

VE.Bus BMS – recommended for systems with our inverter/chargers.
smallBMS – recommend for use in small systems.
Battery Management System BMS 12/200 – recommend for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.

FREE SHIPPING OVER $500 (lower 48)

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 303071 Category: Lithium

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Description

Victron LiFePO4 Battery 12,8V/160Ah Smart BAT512116610

***Discontinued***
Replaced by: BAT512118610
Click Here!
With integrated cell balancing
Can be parallel and series connected
Bluetooth app available to monitor cell voltage and temperature

Requires one of these BMS-es:

VE.Bus BMS â€“ recommended for systems with our inverter/chargers.
smallBMS â€“ recommend for use in small systems.
Battery Management System BMS 12/200 â€“ recommend for use in Automotive and Marine systems having DC-loads and Alternators.
Smart BMS CL 12/100 â€“ recommended for use in Automotive and Marine systems having DC-loads and Alternators.

Additional information

Weight	43.21 lbs
Dimensions	12.2 × 16.9 × 7.9 in
Product Applications	Off-Grid, RV / Food Truck / Mobile
Capability	Install, Sell, Service
Certification	CE
Manufacturer	Victron
MPN	BAT512116610
Power Type	Energy Storage
kW	101-250, 251-500
Wh	1501-2000
kWh	1.51-2
Voltage VDC	12

Reviews

There are no reviews yet.

Be the first to review “Victron Energy LiFePO4 Battery 12,8V/160Ah Smart Litium Battery BAT512116610”

Downloads

Victron LiFePO4 Battery Spec Sheet

Tech Notes

VOLTAGE AND CAPACITY

Nominal voltage	12,8V
Nominal capacity @ 25°C*	160Ah
Nominal capacity @ 0°C*	130Ah
Nominal capacity @ -20°C*	80Ah
Nominal energy @ 25°C*	2048Wh

CYCLE LIFE (capacity ≥ 80% of nominal)

80% DoD	2500 cycles
70% DoD	3000 cycles
50% DoD	5000 cycles

DISCHARGE

Maximum continuous discharge current	320A
Recommended continuous discharge current	≤160A
End of discharge voltage	11,2V

OPERATING CONDITIONS

Operating temperature	Discharge: -20°C to +50°C Charge: +5°C to +50°C
Storage temperature	-45°C to +70°C
Humidity (non-condensing)	Max. 95%
Protection class	IP 22

CHARGE

Charge voltage	Between 14V/28V and 14,4V/28,8V (14,2V/28,4V recommended)
Float voltage	13,5V/27V
Maximum charge current	320A
Recommended charge current	≤80A

OTHER

Max storage time @ 25°C*	1 year
BMS connection	Male + female cable with M8 circular connector, length 50cm
Power connection (threaded inserts)	M8
Dimensions (hxwxd) Inches	9.5 x 12.5 x 6 Inch
Weight	20kg
