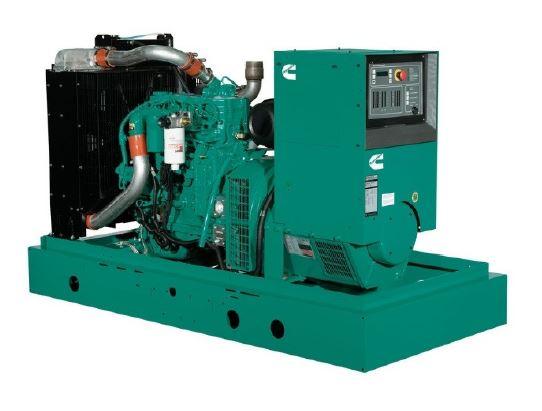

Cummins C80D6C 80kW Light Commercial Agriculture Diesel Generator Open Frame Unit A061T469
80.0kW, 120/240 V, 1-Phase, 60 Hz, 333 Amps, 1800 rpm, 8 lead alternator, PCC2.3 two-wire start control, 400 Amp circuit breaker, low coolant level warning alarm, coolant heater, 80.5 dB(A), muffler, 6 amp battery charger. Open Frame Unit.
Open-frame (unhoused) C-Series diesel sets are fully integrated power generation systems for stationary standby duty in agricultural and light commercial applications — irrigation, dairy and livestock operations, shops and equipment buildings — where the set goes inside a building or under existing cover, or the customer supplies their own housing. Dropping the enclosure keeps cost down and leaves the whole set open for service.
Features and benefits
- Engine. Rugged 4-cycle, liquid-cooled industrial diesel delivering dependable output, reduced emissions and fast response to load changes.
- Alternator. Multiple configurations with low-reactance 2/3 pitch windings, low waveform distortion under non-linear loads, and fault-clearing short-circuit capability for flexible motor starting.
- PowerCommand® 1.1 control, standard. Total system integration including automatic remote start/stop, precise frequency and voltage regulation, alarm and status display, output metering, auto-shutdown at fault detection, and NFPA 110 Level 1 compliance.
- Cooling. Standard package provides reliable running to 50 °C (122 °F) ambient.
- Support. EPA certified, backed by a comprehensive warranty and a worldwide distributor network.
Open-frame units ship without a weather-protective enclosure and are intended for indoor or sheltered installation. Ask us about enclosure, sub-base tank and remote radiator options if the set will be mounted outdoors.
