Multiquip MQ DCA400SSI4F3B Generator 400kVA Three Phase Isuzu T4F Basler
Multiquip DCA400SSI4F3B 400 kVA WhisperWatt mobile diesel generator — 320 kW / 400 kVA prime, 336 kW / 420 kVA standby, 69 dB(A), Isuzu BQ-6WG1X, 55.5 gal tank.

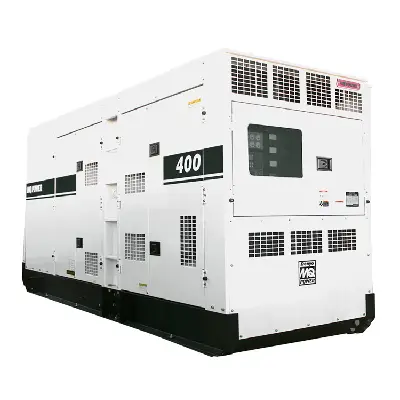

The Multiquip DCA400SSI4F3B is a WhisperWatt Super Silent mobile diesel generator rated 400 kVA prime, built around an Isuzu BQ-6WG1X. Multiquip rates the enclosure at 69 dB(A). Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 320 kW / 400 kVA. Standby: 336 kW / 420 kVA.
- Output. 3-Phase: 208, 220, 240, 416, 440, 480V Reconnectable; Single-Phase: 120, 127, 139, 240, 254, 277V Adjustable.
- Engine. Isuzu BQ-6WG1X, Tier 4 Final, 512.3 bhp (generator RPM 1800).
- Fuel. 55.5 gal tank.
- Sound. 69 dB(A).
- Electrics. controller Basler Controller DGC2020 (Non-Parallel Configured).
- Emissions. Tier 4 Final.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Isuzu BQ-6WG1X.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA400SSI4F3B specifications (PDF).
MQ Power WhisperWatt Super-Silent — 400 kVA Single/Three-Phase Diesel Generator (Isuzu). The DCA400SSI4F3 delivers a prime rating of 320 kW (400 kVA) and standby of 336 kW (420 kVA) from a Tier 4 Final Isuzu diesel. Patented open-delta winding for precise voltage control; electronic governor holds frequency to ±0.25%. E-coat primer with polyurethane enamel finish over weatherproof steel housing keeps operating noise to 69 dB(A); auto start-stop for remote operation. This unit is configured with the Basler DGC2020 controller.
Unit Specifications
| Prime Rating | 320 kW / 400 kVA |
| Standby Rating | 336 kW / 420 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Generator Design | Revolving field, self-ventilated, drip-proof, single bearing; brushless with AVR; 4-pole |
| Sound Level | 69 dB(A) |
Engine Specifications
| Make / Model | Isuzu |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, EGR, DOC & SCR |
Available Options
Tandem-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, parallel control panel, crankcase vent blanket with heating element, battery charger, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: TRLR400XF3DAE (3-axle, electric brakes, 350-gallon tank).
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
Unit Specifications
| Prime Rating | 320 kW / 400 kVA |
| Standby Rating | 336 kW / 420 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V Reconnectable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V Adjustable |
Engine Specifications
| Make/Model | Isuzu BQ-6WG1X |
| Emissions | Tier 4 Final |
| Starting System | Electric |
| Design | 4-cycle, Water Cooled ,Direct Injection, Turbocharged, Charge Air Cooled, EGR, DOC and SCR |
| Gross Engine Power Output | 512.3 bhp / kW |
| Fuel Tank Capacity | 55.5 gal / 210 L |
Features and specifications subject to change without notice. Refer to model-specific data sheet for detailed specifications.
