Description

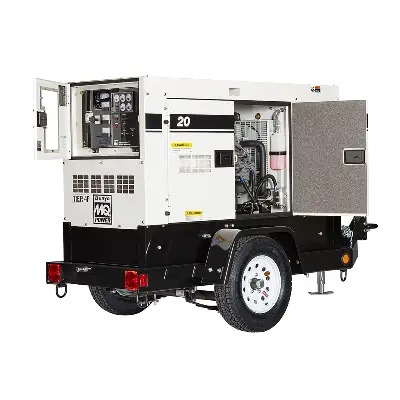

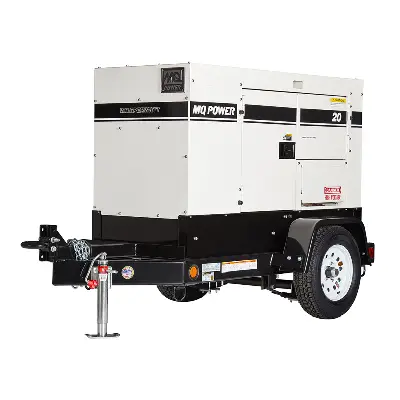

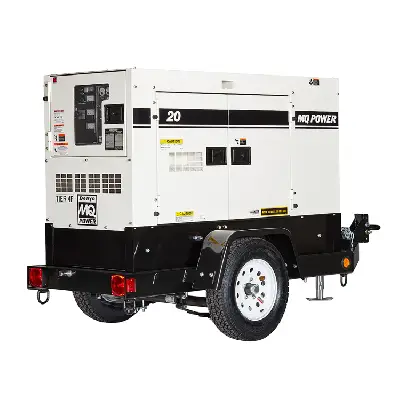

The DCA20SPXU4F is a 20 kW Single Phase generator with 1.0 power factor and 12/240-volt output.
Among the many features, it includes a sound attenuated, weatherproof steel housing with an easy to maintain design that offers direct access to all filters and drain extensions. An electronic governor control maintains steady state 60 Hz within 0.25% from no load to full load.

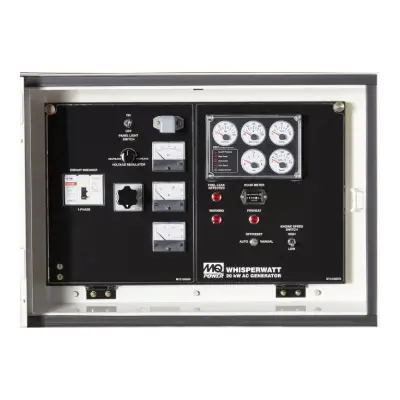

It features an auto start stop that allows the generator to start from a remote location. The unit has an easy-to-read control panel that includes an ammeter, frequency meter, AC circuit breaker and other analog instrumentation.

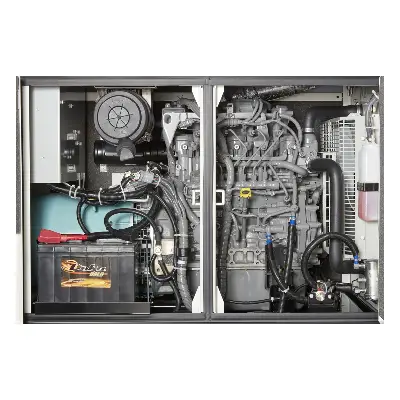

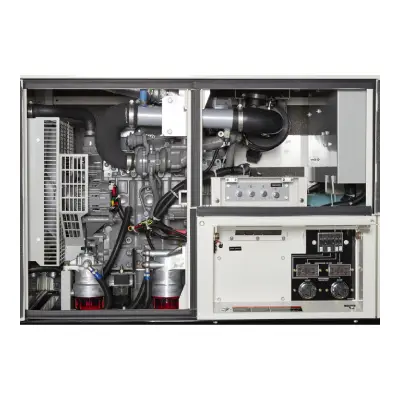

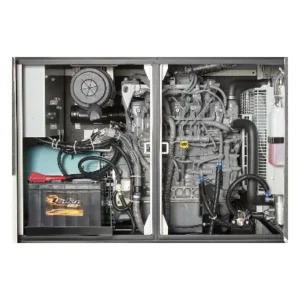

- Heavy duty, 4-cycle, direct injection, heated crankcase vent, turbocharged, diesel engine provides maximum
- EPA emissions certified – Tier 4 final emissions
- Microprocessor engine control system maintains frequency to ±0.25%.
- Full load acceptance of standby nameplate rating in a single
- Fuel/water separator removes condensation from fuel for extended engine Panel mounted alarm light included.
- Sound attenuated, weather resistant, steel housing provides operation at 65 dB(A) at 23 Fully lockable enclosure allows safe unattended operation.
- E-coat and powder coat paint provides durability and weather
- Internal fuel tank with direct reading of fuel
- Spill containment —Bunded design protects environment by capturing up to 124% of engine
- Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class H insulation
- Open delta excitation design provides virtually unlimited excitation for maximum motor starting
- Automatic voltage regulator (AVR) provides precise
- Fully covered power Single-phase terminals and single-phase receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
- ECU754 microprocessor-based digital generator
- Remote 2-wire start/stop
- Operational temperature range of -40° to 85°
- Digital engine gauges include Goil pressure, water temperature, battery volts, engine speed and fuel level.
- Analog generator instrumentation including AC ammeter, AC voltmeter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch, and voltage regulator adjustment
- Automatic safety shutdown system monitors the water temperature, engine oil pressure, overspeed and over crank. Warning lights indicate abnormal
- Emergency Stop Switch — when manually activated, shuts down generator in the event of an emergency.
