Victron Energy SmartShunt 1000A/50mV SHU050210050

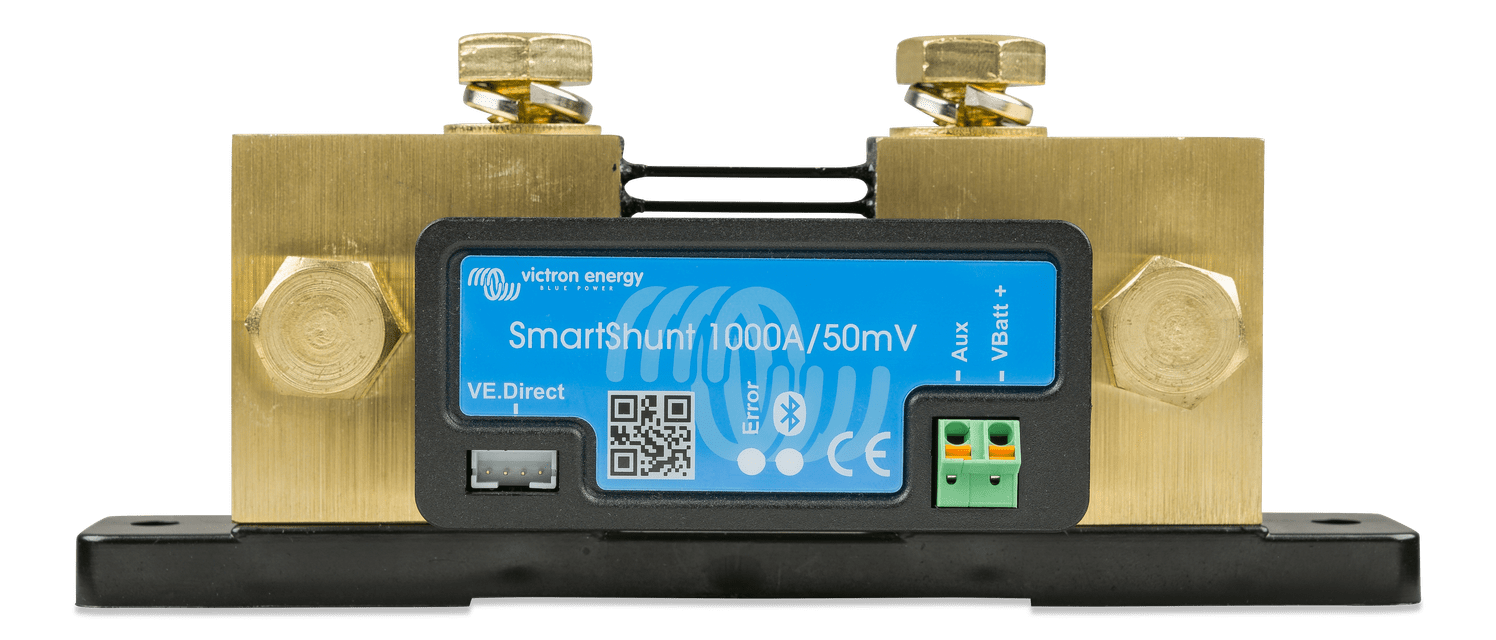

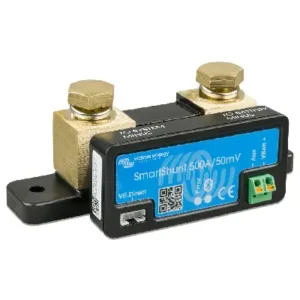

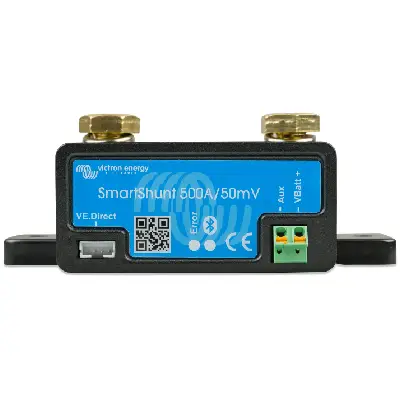

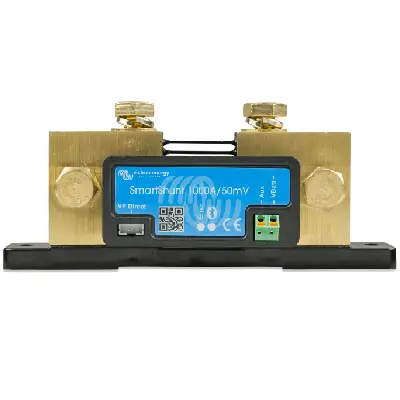

Victron SmartShunt 1000A/50mV

The Smart Battery Shunt

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

$165.75

questions? Call US

(866) 888 6111

SKU: 303998 Category:

Accessories

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Loading...

Description

Victron SmartShunt 1000A/50mV

The Smart Battery Shunt

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Additional information

Weight 2.23 lbs
Dimensions 3.1 × 7.1 × 3.1 in
Product Applications

Off-Grid, RV / Food Truck / Mobile

Capability

Install, Sell, Service

Certification

CE

Manufacturer

Victron

MPN

SHU050210050

Power Type

Energy Storage

kW

501-1000

Voltage VDC

Variable

Reviews

There are no reviews yet.

Be the first to review “Victron Energy SmartShunt 1000A/50mV SHU050210050”

Your email address will not be published. Required fields are marked *

Tech Notes

Models:

1000A

Supply voltage range 6,5 – 70 VDC
Current draw < 1mA
Input voltage range, auxiliary battery 6,5 – 70 VDC
Battery capacity (Ah) 1 – 9999 Ah
Battery-connection M8 bolts
Operating temperature range -40 +50°C (-40 – 120°F)
Dimensions (h x w x d) 1000A: 68 x 168 x 75 mm
Protection category IP21
