Victron VE Panel 5kVA 120/240 NA Primary 48Vdc

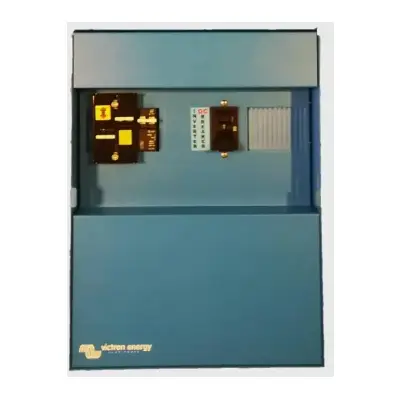

Victron Energy VE Panel 5kVA 120/240 NA Primary 48Vdc
The Victron VEPanel is an internally pre-wired enclosure that provides an easy installation solution for the 3K/5K Multi-Plus or Quattro series of Victron inverter chargers. Primary and Secondary VEPanels available for single or dual inverter installations. Speak with your system design specialist about your specific requirements to make sure of proper system sizing.
A built in AC bypass switch with full system current capability and a DC disconnect breaker for safe and easy isolation for servicing of the inverter and/or battery bank.
Battery to inverter/charger DC disconnect breaker 250 Amps.
Inverter AC input overcurrent protection breakers.
DIN mount AC and DC breakers for quick and easy operation.
A500A/50mV DC shunt installed for easy connection to battery status monitor.
Enclosure and components are UL/CSA certified and designated for indoor use.
Configurations available for both single 120 VAC, 120/240 VAC and 3 Phase systems.
