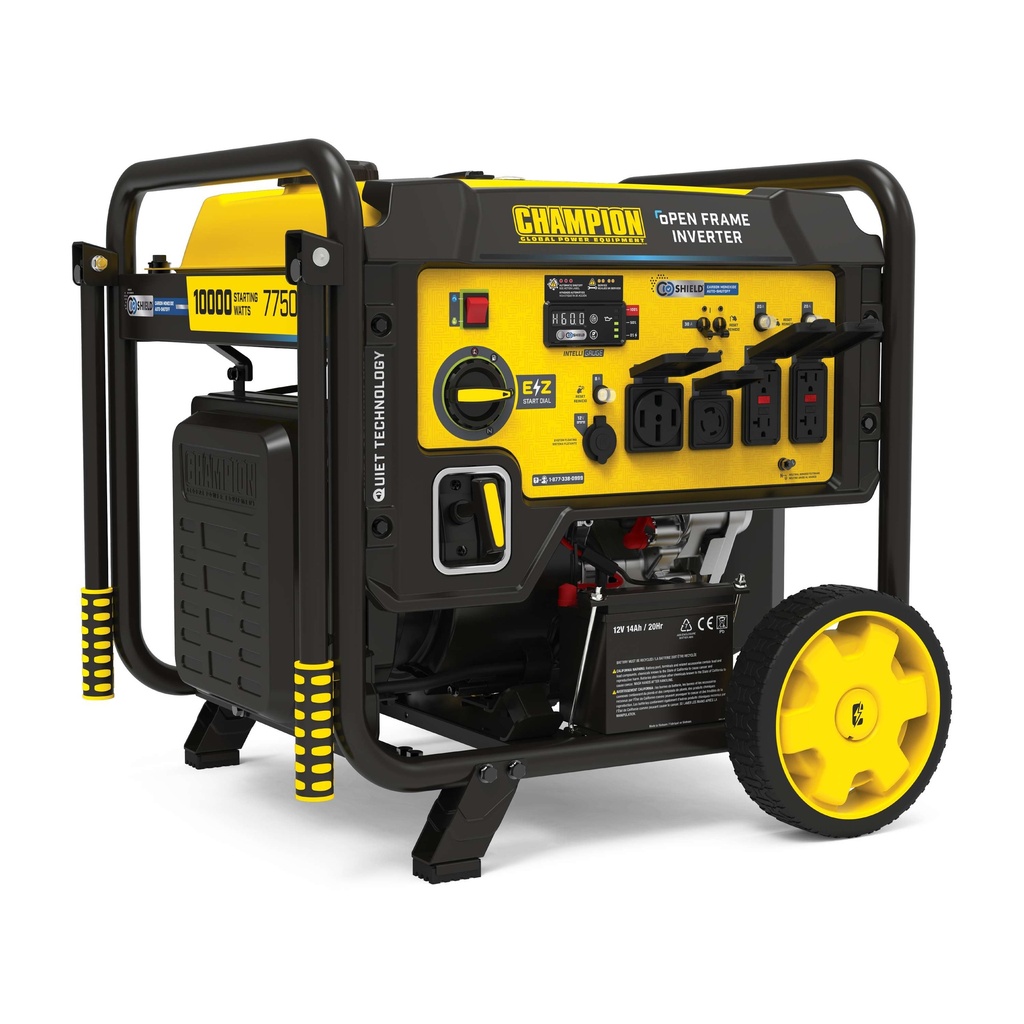

Champion 10,000-Watt Electric Start Home Backup Portable Open Frame Inverter Generator with Quiet Technology and CO Shield®
Champion 201240 7,750 W inverter portable generator — 10,000 W starting / 7,750 W running on gasoline, 72 dB(A), 459cc, 12 hr at 1/4 load, CO Shield, 172 lb.
Champion's 10,000-Watt Inverter Generator with Quiet Technology reduces operating noise for peaceful home backup, worksites, or events. CO Shield® adds safety, Clean Power protects electronics, and EZ Start Dial simplifies startups. Delivers 7750 running watts for 12 hr. run time at 25% load.
Specifications
- Output. Gasoline: 10,000 W starting / 7,750 W running.
- Engine. 459cc, Champion 4-stroke (no named series published).
- Fuel and run time. 7.45 gal tank, 12 hours at 1/4 load.
- Sound. 72 dB(A) (Champion publishes no measurement distance for this model).
- Starting. Recoil, electric.
- Outlets. (2) 120V 20A GFCI Duplex (5-20R); (1) 120/240V 30A Locking (L14-30R); (1) 120/240V 32.3A (14-50R).
- CO Shield®. Carbon monoxide auto shutoff — the unit shuts itself down if CO builds up around it.
- Size and weight. 27.1 in. L x 28 in. W x 26.2 in. H, 172 lb.
- Warranty. 3-year limited warranty.
- Emissions. EPA Certified: Yes; PGMA Compliant G300-2023.
Note on the 30 A outlet. The 30 A receptacle on this machine is a locking outlet, not the TT-30R an RV cord plugs into. If you are powering a coach you will need an adapter, or a model with a proper RV receptacle — ask and we will point you at one.
Altitude — this matters more than the sticker suggests
Champion's own operator's manual for this machine states that engine power and generator output are reduced by about 3.5% for every 1,000 ft of elevation above sea level. That sentence is in the manual, not on the product page, and it is the number that decides whether this generator does what you bought it for.
- Denver, ~5,280 ft: about 18% off — roughly 6,318 W instead of 7,750 W.
- Colorado Springs, ~6,035 ft: about 21% off — roughly 6,113 W instead of 7,750 W.
- Monument / Palmer Divide, ~7,000 ft: about 24% off — roughly 5,851 W instead of 7,750 W.
- Leadville / high passes, ~9,000 ft: about 32% off — roughly 5,309 W instead of 7,750 W.
Read this before you buy it for the Front Range. Champion publishes a high-altitude main jet for this model, but it covers 3000-6000 ft. (914-1829 m) — and Colorado Springs is 6,035 ft. Champion offers no jetting above that band for this particular unit. It will still run, with the power loss in the table above, but you would be outside the range Champion supports. If this generator is going to live above 6,000 ft, talk to us first: there are models in this same line that Champion does jet for your elevation, and we would rather sell you one of those.
One warning worth repeating. Champion is explicit that a high-altitude jet must not be run below its minimum altitude — “Operation using the alternative main jet at elevations lower than the recommended minimum altitude can damage the engine.” If you take the machine back down to sea level, the standard jet goes back in.
Manual. Champion publishes the full operator’s manual for this model, including the high-altitude section quoted above: 201240 operator’s manual (PDF).
Champion's 10,000-Watt Inverter Generator with Quiet Technology reduces operating noise for peaceful home backup, worksites, or events. CO Shield® adds safety, Clean Power protects electronics, and EZ Start Dial simplifies startups. Delivers 7750 running watts for 12 hr. run time at 25% load.
- Low Noise — Quiet Technology delivers 72 dB(A) operation, 50% quieter than typical generators, for undisturbed home backup or outdoor events.
- Safe Charging — Clean Power technology protects devices like phones or EV chargers with stable output for reliable use at events or home.
- Easy Startup — EZ Start Dial and Cold Start technology enable easy electric or manual startup, even in chilly conditions, for any user.
- CO Shield® Technology — Built-in carbon monoxide auto-shutoff technology continuously monitors CO levels and is designed to help reduce carbon monoxide risks.
- Champion Support — Backed by a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country.
The Champion Power Equipment 10,000-Watt Electric Start Home Backup Portable Open Frame Inverter Generator with Quiet Technology and CO Shield® delivers reliable power for home backup, worksites, or events. With 10,000 starting watts and 7750 running watts, its Clean Power output protects sensitive electronics like laptops or EV chargers. Quiet Technology reduces operating noise to 72 dB(A), up to 50% quieter and 20% lighter than traditional generators, ideal for peaceful use. Powered by gasoline, it offers 12 hr. run time at 25% load for extended operation. The Intelligauge 5-mode display tracks voltage, frequency, session run time, total run time, and power output for easy monitoring. Whether you’re running major appliances or tools, outlets like (2) 120V 20A GFCI Duplex (5-20R), (1) 120/240V 30A Twistlock (L14-30R), (1) 120/240V 32.3A (14-50R), and (1) 12V 8A DC Automotive adapt to diverse needs, with covered outlets for durability. Ease of use shines with the EZ Start Dial, enabling simple electric or manual recoil starts, while Cold Start technology ensures reliability in cold weather. Two 9.5 in. never-flat wheels and folding handles enhance portability. Plus, with a USB adapter, engine oil, and oil funnel included, it’s ready to use. EPA-certified, this model comes with a 3-year limited warranty, FREE lifetime technical support, and access to nationwide service centers—giving you peace of mind with your purchase. CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust. If CO Shield detects unsafe, elevated CO, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. Never allow engine exhaust to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far from occupied buildings with engine exhaust pointed away from people and buildings. Meets ANSI/PGMA G300 requirements.
