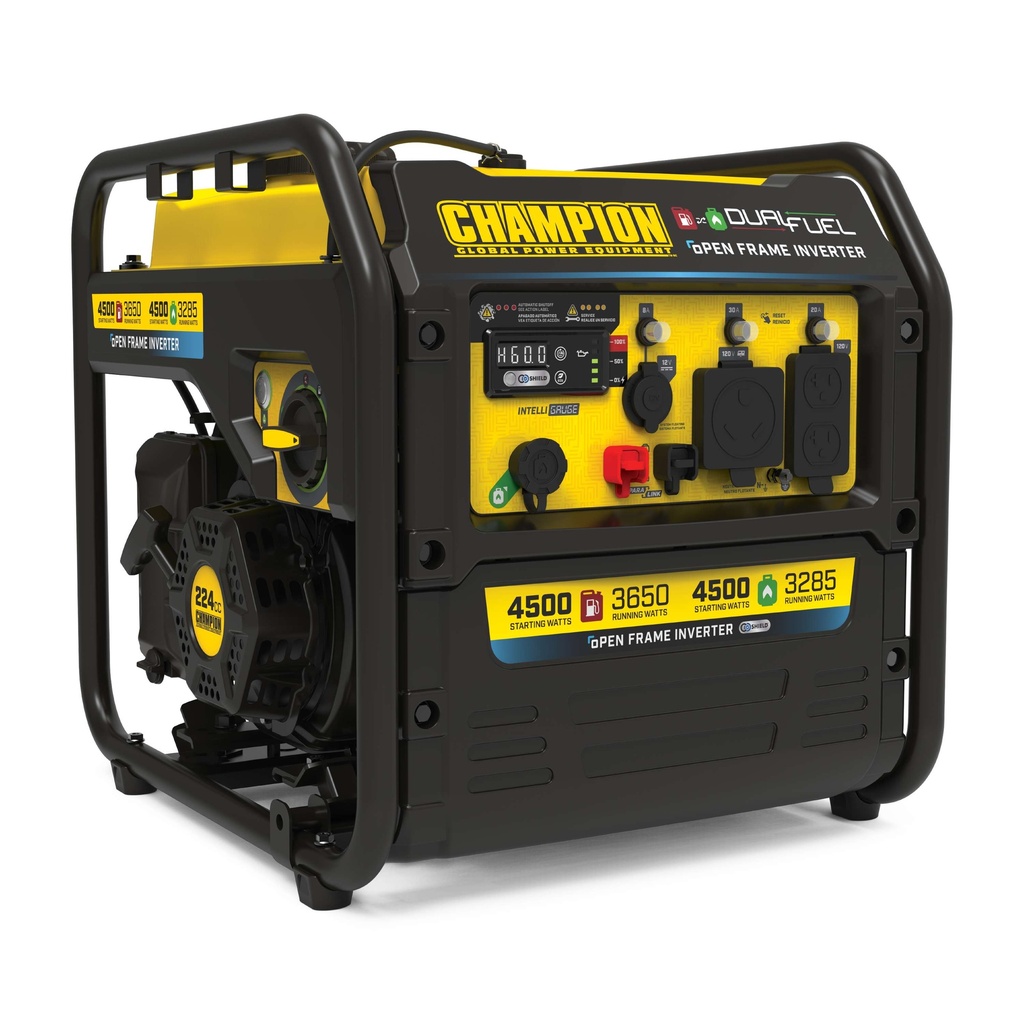

Champion 4500-Watt Electric Start Dual Fuel RV Ready Portable Open Frame Inverter Generator with Quiet Technology and CO Shield®
Champion 201321 3,650 W dual-fuel inverter portable generator — 4,500 W starting / 3,650 W running on gasoline, 3,285 W on LP, 64 dB(A), 224cc, 22 h. on gasoline; 21 h. on propane at 1/4 load, CO Shield, 30 A RV receptacle, 92.6 lb.
Champion’s Dual Fuel Open Frame Inverter is quieter and lighter than typical 4500-watt generators. Dual Fuel technology offers flexibility to run on gasoline or propane. Features include Quiet Technology, Extended Run Time, and the CO Shield® carbon monoxide auto shutoff system.
Specifications
- Output. Gasoline: 4,500 W starting / 3,650 W running. Propane: 4,500 W starting / 3,285 W running.
- Engine. 224cc, Champion 4-stroke.
- Fuel and run time. 4.02 gal tank, 22 h. on gasoline; 21 h. on propane at 1/4 load.
- Sound. 64 dB(A) (Champion publishes no measurement distance for this model).
- Starting. Electric.
- Outlets. (1) 120V 30A RV (TT-30R); (1) 120V 20A Duplex (5-20R); (1) 12V 8A (Regulated Automotive); Parallel Ports.
- CO Shield®. Carbon monoxide auto shutoff — the unit shuts itself down if CO builds up around it.
- Size and weight. 20.9 in. L x 18.3 in. W x 19.4 in. H, 92.6 lb.
- Warranty. 3-year limited warranty.
- Emissions. EPA Certified: Yes; PGMA Compliant G300-2023. 49-state vs CARB not stated.
Altitude — this matters more than the sticker suggests
Champion's own operator's manual for this machine states that engine power and generator output are reduced by about 3.5% for every 1,000 ft of elevation above sea level. That sentence is in the manual, not on the product page, and it is the number that decides whether this generator does what you bought it for.
- Denver, ~5,280 ft: about 18% off — roughly 2,975 W instead of 3,650 W.
- Colorado Springs, ~6,035 ft: about 21% off — roughly 2,879 W instead of 3,650 W.
- Monument / Palmer Divide, ~7,000 ft: about 24% off — roughly 2,756 W instead of 3,650 W.
- Leadville / high passes, ~9,000 ft: about 32% off — roughly 2,500 W instead of 3,650 W.
Read this before you buy it for the Front Range. Champion publishes a high-altitude main jet for this model, but it covers 3000 ft. - 6000 ft.(914 m - 1829 m) — and Colorado Springs is 6,035 ft. Champion offers no jetting above that band for this particular unit. It will still run, with the power loss in the table above, but you would be outside the range Champion supports. If this generator is going to live above 6,000 ft, talk to us first: there are models in this same line that Champion does jet for your elevation, and we would rather sell you one of those.
One warning worth repeating. Champion is explicit that a high-altitude jet must not be run below its minimum altitude — “Operation using the alternative main jet at elevations lower than the recommended minimum altitude can damage the engine.” If you take the machine back down to sea level, the standard jet goes back in.
Manual. Champion publishes the full operator’s manual for this model, including the high-altitude section quoted above: 201321 operator’s manual (PDF).
Champion’s Dual Fuel Open Frame Inverter is quieter and lighter than typical 4500-watt generators. Dual Fuel technology offers flexibility to run on gasoline or propane. Features include Quiet Technology, Extended Run Time, and the CO Shield® carbon monoxide auto shutoff system.
- Dual Fuel — Operate on either gasoline or propane. 4500 starting watts and runs up to 22 hr. on gas or 21 hr. on propane, with 64 dB(A) operation ideal for camping, RVs, or backup power.
- Electric Start — Trust the reliable 224cc Champion engine with battery-included, push-button electric start, It’s up to 50% quieter and 20% lighter than other equally rated traditional generators.
- Easy Monitoring and Operation — Intelligauge with Power Meter tracks voltage, frequency, and run time, plus includes CO Shield® carbon monoxide auto-shutoff system.
- Clean Power for Sensitive Electronics — Safely power devices and appliances in your home or RV with multiple covered outlets, including a regulated 12V automotive-style outlet for on-the-go use.
- Champion Support — Comes with a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country.
The Champion Power Equipment 4500-Watt Dual Fuel Open Frame Inverter Generator with CO Shield® is perfect for camping, tailgating, RV use, or as a reliable backup for home essentials. Our Quiet Technology reduces noise, while the efficient design minimizes size and weight. The 224cc Champion engine delivers 4500 starting watts and 3650 running watts on gasoline, running for 22 hours at 25% load with a full 4.02-gallon tank. On propane, it offers 4500 starting watts and 3285 running watts, with a runtime of 21 hours at 25% load using a 20-pound tank. A 6-foot propane hose with a built-in regulator is included. This generator features covered outlets: a 120V 30A RV outlet (TT-30R), a 120V 20A (5-20R) household duplex outlet, and a 12V automotive-style outlet. With the optional Parallel Kit (sold separately), you can connect two compatible Champion inverters for increased output. The Quick Touch Panel provides easy access to controls, while the Intelligauge with Power Meter helps you monitor voltage, frequency, and operating hours. Economy Mode adjusts engine speed based on power consumption, extending run times and enhancing fuel efficiency. EPA-certified, this inverter generator comes with a 3-year limited warranty, FREE lifetime technical support, and access to our nationwide service centers, ensuring peace of mind with every purchase. CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300.
