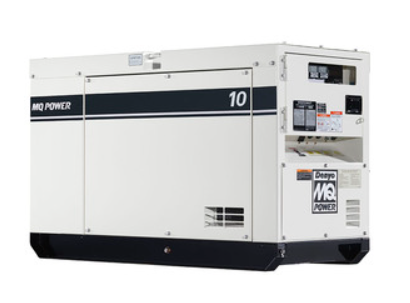

Multiquip MQ DCA10SPX4 Generator 10kW Single Phase Kubota Tier 4 Final
Multiquip DCA10SPX4 10 kVA WhisperWatt mobile diesel generator — 10 kW / 10 kVA prime, 11 kW / 11 kVA standby, Kubota D1503-M, 16.5 gal tank, 1,112 lb (505 kg) dry.
The Multiquip DCA10SPX4 is a WhisperWatt Super Silent mobile diesel generator rated 10 kVA prime, built around a Kubota D1503-M. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 10 kW / 10 kVA. Standby: 11 kW / 11 kVA.
- Output. 240/120 V single-phase. 41.6 amps continuous at 240 V; 20 amps GFCI at 120 V; 30 amps L5-30R at 120 V. 60 Hz.
- Engine. Kubota D1503-M, Tier 4 Final (catalog title: 'Kubota Tier 4F'), 3, 91.4 cu. in. (1,499 cc), 18.4 hp @ 1,800 rpm.
- Fuel. 16.5 gal tank. Full load 0.98 gal/hr; 3/4 load 0.75 gal/hr; 1/2 load 0.58 gal/hr; 1/4 load 0.44 gal/hr. Fuel: #2 diesel, ultra-low sulfur only.
- Size and weight. 1,112 lb (505 kg) dry, 1,300 lb (590 kg) operating.
- Emissions. Tier 4 Final. Multiquip publishes an exhaust emission data sheet for the related DCA10SPXU4 at https://service.multiquip.com/pdfs/DCA10SPXU4_Emission_Data_2018.pdf.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Kubota D1503-M.
That is a naturally aspirated engine, and naturally aspirated diesels lose real output as air thins — the losses become significant above roughly a mile, which is where most of our customers work. Size this one for the elevation it will actually run at, not for sea level.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA10SPX4 specifications (PDF).
MQ Power WhisperWatt Super-Silent — 10 kW Single-Phase Diesel Generator. The DCA10 is a 10 kW single-phase generator with 1.0 power factor and 120/240V output. Electronic governor control, an easy-to-read analog panel, and a lockable sound-attenuated weatherproof steel housing with single-point lifting eye. Easy-maintenance design gives quick access to all filters and drain extensions.
Unit Specifications
| Prime Rating | 10 kW |
| Standby Rating | 11 kW |
| Generator RPM | 1800 |
| Voltage - Single Phase | 120/240 V |
| Generator Design | Revolving field, self-ventilated, drip-proof, single bearing |
| Voltage Regulation | ±0.5% |
| Power Factor | 1.0 |
| Excitation | Brushless with AVR |
| No. Poles | 4-pole |
| Frequency | 60 Hz |
| Sound Level (Full Load at 23 ft.) | 61 dB(A) |
Engine Specifications
| Make / Model | Kubota D1503 |
| Emissions | EPA Tier 4 Certified |
| Starting System | Electric |
| Design | 3-cylinder, 4-cycle, water-cooled, swirl chamber |
| Gross Engine Power | 24.5 bhp / 18.3 kW |
| Fuel Tank Capacity | 16.4 gal / 62 L |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: single-axle multipurpose, with optional integral 28-gallon fuel cell.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
