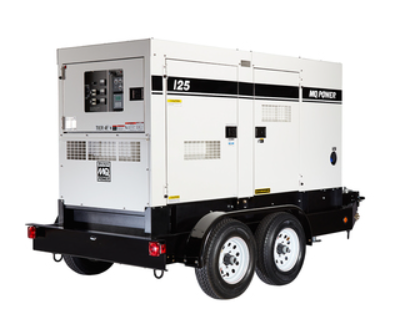

Multiquip MQ DCA125SSIU4F Generator 125kVA Three Phase Isuzu Tier 4 Final Env
Multiquip DCA125SSIU4F 125 kVA WhisperWatt mobile diesel generator — 100 kW / 125 kVA prime, 110 kW / 137.5 kVA standby, 66 dB(A) at 23 feet, Isuzu BR-4HK1X, 169 gal tank, 5,291 lbs. (2,400 kg) dry.
The Multiquip DCA125SSIU4F is a WhisperWatt Super Silent mobile diesel generator rated 125 kVA prime, built around an Isuzu BR-4HK1X. Multiquip rates the enclosure at 66 dB(A) at 23 feet. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 100 kW / 125 kVA. Standby: 110 kW / 137.5 kVA.
- Output. 3-phase: 208Y/120, 220Y/127, 240Y/139, 416Y/240, 440Y/254, 480Y/277 (product page also lists 460V; switchable). Single-phase: 240/120. 1-phase 120V: 300 A x 2 (Zigzag); 1-phase 240V: 300 A (Zigzag); 3-phase 208V: 300 A; 3-phase 240V: 300 A; 3-phase 480V: 150 A. 60 Hz.
- Engine. Isuzu BR-4HK1X, EPA Tier 4 Final Certified, 4, 317 in3 (5193 cc), 170.8 hp (127.4 kW) @ 1800 rpm (data sheet). NOTE: product page publishes a different figure, 166 bhp (124 kW).
- Fuel. 169 gal tank. Full load 7.1 gph (26.9 lph); 3/4 load 5.6 gph (21.2 lph); 1/2 load 4.1 gph (15.5 lph); 1/4 load 2.6 gph (10.0 lph).
- Sound. 66 dB(A) at 23 feet.
- Electrics. Alternator Brushless, open delta design, with automatic voltage regulator (AVR), controller ECU845 microprocessor-based digital generator controller.
- Size and weight. Skid: 181.18 in L x 101.2 in W x 120.08 in H (4602 x 2570 x 3050 mm). NOTE: product page publishes conflicting figures, 181 x 79.5 x 24.7 in, 5,291 lbs. (2,400 kg) dry, 6,702 lbs. (3,040 kg) wet. NOTE: product page publishes 1,722 lb (781 kg) 'without fuel', which conflicts with the data sheet dry weight operating.
- DEF. 7.4 gallons (28 liters).
- Emissions. EPA Tier 4 Final Certified.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Isuzu BR-4HK1X.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA125SSIU4F specifications (PDF).
MQ Power WhisperWatt Super-Silent — 125 kVA Single/Three-Phase Diesel Generator. The DCA125SSIU4F delivers a prime rating of 100 kW (125 kVA) and standby of 110 kW (137.5 kVA). A patented open-delta winding gives precise voltage control and superior motor-starting; an electronic governor holds frequency to ±0.25% from no load to full load. Powder-coated, weather-resistant steel housing with 110% fluid containment keeps operating noise to 66 dB(A); auto start-stop digital controller for remote operation.
Unit Specifications
| Prime Rating | 100 kW / 125 kVA |
| Standby Rating | 110 kW / 137.5 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Generator Design | Revolving field, self-ventilated, drip-proof, single bearing; brushless with AVR; 4-pole |
| Voltage Regulation | ±0.5% |
| Sound Level | 66 dB(A) |
Engine Specifications
| Make / Model | Isuzu BR-4HK1X |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, charged air cooled EGR, DOC, SCR |
| Gross Engine Power | 166 bhp / 124 kW |
| Fuel Tank Capacity | 169 gal / 640 L |
Available Options
Tandem-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, parallel control panel, crankcase vent blanket with heating element, battery charger, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: TRLR125US (tandem-axle, electric or hydraulic brakes).
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
