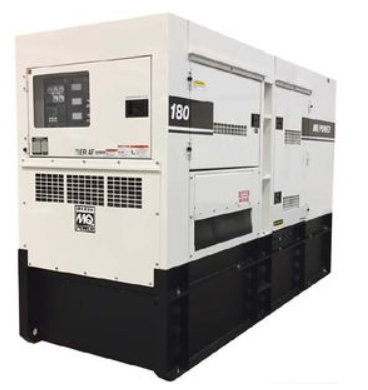

Multiquip MQ DCA180SSJU4F3 Generator 180kVA Three Phase John Deere Tier 4 Final Env
Multiquip DCA180SSJU4F3 180 kVA WhisperWatt mobile diesel generator — 144 kW / 180 kVA prime, 158 kW / 198 kVA standby, 70 dB(A) at 23 feet, John Deere 6068HFG05, 319 gal tank, 8,532 lbs (3,870 kg) dry.
The Multiquip DCA180SSJU4F3 is a WhisperWatt Super Silent mobile diesel generator rated 180 kVA prime, built around a John Deere 6068HFG05. Multiquip rates the enclosure at 70 dB(A) at 23 feet. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 144 kW / 180 kVA. Standby: 158 kW / 198 kVA.
- Output. 3-Phase: 240/139, 208Y/120, 220Y/127, 240Y/139, 480/277, 416Y/240, 440Y/254, 480Y/277; Single-Phase: 240/120V. Product page states 3-Phase '208, 220, 240, 416, 440, 460, 480V Reconnectable' and Single-Phase '120, 127, 139, 240, 254, 277V Adjustable'. 1O 120V: 400 A; 1O 240V: 200 A; 3O 208V: 433 A; 3O 240V: 433 A; 3O 480V: 216 A. 50/60 Hz.
- Engine. John Deere 6068HFG05, EPA Tier 4 Final Certified (product page says 'EPA Tier 4 Certified'), 6, 414.96 in3 (6.8 liters), 257 hp (192 kW) at 1800 rpm.
- Fuel. 319 gal tank. Full load 10.1 gph; 3/4 load 7.8 gph; 1/2 load 5.8 gph; 1/4 load 4.0 gph.
- Sound. 70 dB(A) at 23 feet.
- Electrics. Alternator Brushless, with AVR, controller ECU845 microprocessor-based digital generator controller.
- Size and weight. 8,532 lbs (3,870 kg) dry, 11,266 lbs (5,110 kg) wet operating.
- DEF. 29.8 gallons (112.9 L).
- Emissions. EPA Tier 4 Final Certified.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a John Deere 6068HFG05.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA180SSJU4F3 specifications (PDF).
MQ Power WhisperWatt Super-Silent — 180 kVA Single/Three-Phase Diesel Generator (John Deere). The DCA180SSJU4F3 delivers a prime rating of 144 kW (180 kVA) and standby of 158 kW (198 kVA) from a Tier 4 Final John Deere diesel. Patented open-delta winding for precise voltage control; electronic governor holds frequency to ±0.25%. Powder-coated, weather-resistant steel housing with 110% fluid containment keeps operating noise to 70 dB(A); auto start-stop digital controller for remote operation.
Unit Specifications
| Prime Rating | 144 kW / 180 kVA |
| Standby Rating | 158 kW / 198 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Generator Design | Revolving field, self-ventilated, drip-proof, single bearing; brushless with AVR; 4-pole |
| Sound Level | 70 dB(A) |
Engine Specifications
| Make / Model | John Deere |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, EGR, DOC & SCR |
Available Options
Tandem-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, parallel control panel, crankcase vent blanket with heating element, battery charger, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: TRLR180EV (tandem-axle, electric or hydraulic brakes).
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
