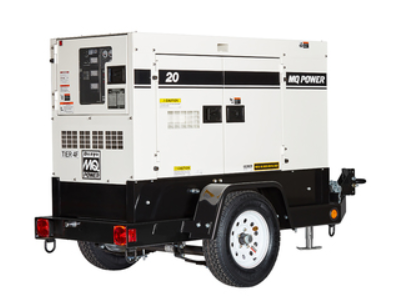

Multiquip DCA20SPXU4F 20 kVA WhisperWatt mobile diesel generator — 20 kW / 20 kVA prime, 22 kW / 22 kVA standby, 65 dB(A) at 23 feet at full load, Isuzu, 41.7 gal tank, 1,795 lbs. (814 kg) dry.
The Multiquip DCA20SPXU4F is a WhisperWatt Super Silent mobile diesel generator rated 20 kVA prime, built around an Isuzu. Multiquip rates the enclosure at 65 dB(A) at 23 feet at full load. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 20 kW / 20 kVA. Standby: 22 kW / 22 kVA.
- Output. 120/240 V single phase. 1-phase 120 Volt: 83 x 2; 1-phase 240 Volt: 83. 60 Hz (steady-state regulation +/-3-5%); voltage regulation +/-0.5% no load to full load.
- Engine. Isuzu, EPA Tier 4 Final Certified, 4, 133.0 in3 (2179 cc), 40.2 hp (30 kW) @ 1800 rpm (product page states 40.2 bhp / 29.9 kW).
- Fuel. 41.7 gal tank. 1.62 gph at full load.
- Sound. 65 dB(A) at 23 feet at full load.
- Electrics. Alternator Brushless, 4-pole revolving field, self-ventilated, drip-proof, single bearing, with automatic voltage regulator (AVR), controller ECU754 microprocessor-based digital generator controller.
- Size and weight. 1,795 lbs. (814 kg) dry, 2,137 lbs. (969 kg) operating.
- Emissions. Tier 4 Final; 4-cycle water-cooled, direct injection, charge air cooled, EGR, DOC.
A note on the numbers. Multiquip's own data sheet and product page disagree on engine model for this model, so we have left that figure off rather than pick one. Ask us and we will get it confirmed by the factory.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Isuzu.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA20SPXU4F specifications (PDF).
MQ Power WhisperWatt Super-Silent — 20 kW Single-Phase Diesel Generator. The DCA20SPXU4F is a 20 kW single-phase generator with 1.0 power factor and 120/240V output. Sound-attenuated weatherproof steel housing with easy-maintenance direct access to all filters and drain extensions. Auto start-stop allows remote starting; easy-to-read analog control panel.
Unit Specifications
| Prime Rating | 20 kW |
| Standby Rating | 22 kW |
| Generator RPM | 1800 |
| Voltage - Single Phase | 120/240 V |
| Power Factor | 1.0 |
| Frequency | 60 Hz |
Engine Specifications
| Make / Model | Isuzu |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailers: TRLR25US2 (single-axle) or TRLR75XF2 100-gallon extended-fuel trailer.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
