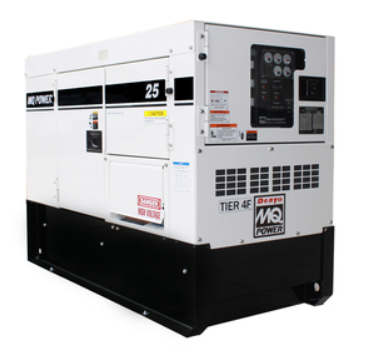

Multiquip MQ DCA25SSIU4F Generator 25kVA Three Phase Isuzu Tier 4 Final Env
Multiquip DCA25SSIU4F 25 kVA WhisperWatt mobile diesel generator — 20 kW / 25 kVA prime, 22 kW / 27.5 kVA standby, 65 dB(A) at 23 feet at full load, Isuzu 4LE2T, 41.7 gal tank, 1,795 lbs. (814 kg) dry.
The Multiquip DCA25SSIU4F is a WhisperWatt Super Silent mobile diesel generator rated 25 kVA prime, built around an Isuzu 4LE2T. Multiquip rates the enclosure at 65 dB(A) at 23 feet at full load. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 20 kW / 25 kVA. Standby: 22 kW / 27.5 kVA.
- Output. Three-phase: 208Y/120, 220Y/127, 240Y/139 and 416Y/240, 440Y/254, 480Y/277. Single-phase: 240/120. 60 Amps at 3-phase 208 V and 240 V, and at 1-phase 120 V and 240 V; 30 Amps at 3-phase 480 V. 60 Hertz.
- Engine. Isuzu 4LE2T, EPA Tier 4 Final Certified, 4, 133.0 in3 (2179 cc), 40.2 hp (30 kW) @ 1800 rpm.
- Fuel. 41.7 gal tank. Full load 1.62 gph; 3/4 load 1.26 gph; 1/2 load 0.94 gph; 1/4 load 0.67 gph.
- Sound. 65 dB(A) at 23 feet at full load.
- Electrics. Alternator Brushless, revolving field, with automatic voltage regulator (AVR), controller ECU755 microprocessor-based digital generator controller.
- Size and weight. 105.81 in L x 65.30 in W x 71.65 in H (as printed on the data sheet), 1,795 lbs. (814 kg) dry, 2,137 lbs. (969 kg) wet operating.
- Emissions. EPA Tier 4 Final Certified; 4-cycle, water cooled, direct injection, turbocharged.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Isuzu 4LE2T.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA25SSIU4F specifications (PDF).
MQ Power WhisperWatt Super-Silent — 25 kVA Single/Three-Phase Diesel Generator. The DCA25SSIU4F delivers a prime rating of 20 kW (25 kVA) and standby of 22 kW (27.5 kVA). A patented open-delta winding gives precise voltage control and strong motor-starting; an electronic governor holds frequency to ±0.25% from no load to full load. The e-coated, powder-coated weatherproof steel enclosure keeps operating noise to 65 dB(A), with an integrated 24-hour fuel tank and fluid containment.
Unit Specifications
| Prime Rating | 20 kW / 25 kVA |
| Standby Rating | 22 kW / 27.5 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Sound Level | 65 dB(A) |
Engine Specifications
| Make / Model | Isuzu 4LE2T |
| Emissions | EPA Tier 4 Final Certified |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, EGR |
| Starting System | Electric |
| Gross Engine Power | 40.2 bhp / 30 kW |
| Fuel Tank Capacity | 41.7 gal / 158 L (24-hour tank) |
Dimensions & Weights
| Dry Weight | 1,795 lb / 814 kg |
| Wet Weight | 2,137 lb / 969 kg |
| Max Lifting Point Capacity | 5,150 lb / 2,335 kg |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailers: TRLR25US2 (single unit) or TRLR75XF2 100-gallon extended-fuel trailer.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
Unit Specifications
| Prime Rating | 20 kW / 25 kVA |
| Standby Rating | 22 kW / 27.5 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V Switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V Switchable |
Engine Specifications
| Make/Model | Isuzu / 4LE2T |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water cooled, direct injection, turbocharged, EGR |
| Gross Engine Power Output | 40.2 bhp / 30 kW |
| Fuel Tank Capacity | 41.7 gal / 158 L |
Dimensions
| Overall Length | 105.79 in / 2,687 mm |
| Overall Width | 56.18 in / 1,427 mm |
| Overall Height | 20.85 in / 529.6 mm |
| Without Fuel | 444 lb / 201 kg |
Features and specifications subject to change without notice. Refer to model-specific data sheet for detailed specifications.
