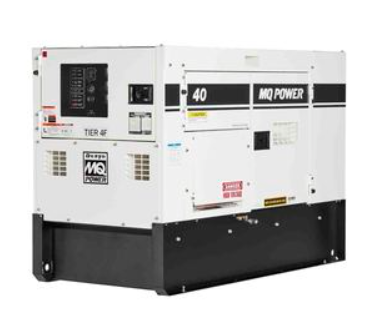

Multiquip MQ DCA40SSKU4F2 Generator 36kVA Three Phase Kubota Tier 4 Final Env
Multiquip DCA40SSKU4F2 36 kVA WhisperWatt mobile diesel generator — 28.8 kW / 36 kVA prime, 30.2 kW / 37.8 kVA standby, 63 dB(A) at 23 feet (at full load), Kubota V2403-CR-TIE4BG (data sheet); product page publishes it as V2403-CR-T, 67.4 gal tank, 2,205 lbs. (1000 kg) dry.
The Multiquip DCA40SSKU4F2 is a WhisperWatt Super Silent mobile diesel generator rated 36 kVA prime, built around a Kubota V2403-CR-TIE4BG (data sheet); product page publishes it as V2403-CR-T. Multiquip rates the enclosure at 63 dB(A) at 23 feet (at full load). Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 28.8 kW / 36 kVA. Standby: 30.2 kW / 37.8 kVA.
- Output. 3-phase: 208, 220, 240, 416, 440, 480V (product page also lists 460V; switchable). Single-phase: 120, 240V (product page lists 120, 127, 139, 240, 254, 277V switchable). 1-phase 120V: 80 A (4 wire); 1-phase 240V: 40 A (4 wire); 3-phase 240V: 86 A; 3-phase 480V: 43 A. 60 Hz.
- Engine. Kubota V2403-CR-TIE4BG (data sheet); product page publishes it as V2403-CR-T, EPA Tier 4 Final Certified, 4, 148.5 in3 (2434 cc), 48.3 hp (36 kW) @ 1800 rpm (data sheet). NOTE: product page publishes 48.3 bhp but converts it as 39 kW.
- Fuel. 67.4 gal tank. Full load 2.3 gph (8.7 lph); 3/4 load 1.8 gph (6.7 lph); 1/2 load 1.3 gph (5.1 lph); 1/4 load 0.8 gph (3.0 lph).
- Sound. 63 dB(A) at 23 feet (at full load).
- Size and weight. 76.38 in L x 53.15 in W x 43.3 in H (1940 x 1350 x 1100 mm), 2,205 lbs. (1000 kg) dry, 2,735 lbs. (1,240 kg) wet operating.
- Emissions. EPA Tier 4 Final Certified.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Kubota V2403-CR-TIE4BG (data sheet); product page publishes it as V2403-CR-T.
That is a naturally aspirated engine, and naturally aspirated diesels lose real output as air thins — the losses become significant above roughly a mile, which is where most of our customers work. Size this one for the elevation it will actually run at, not for sea level.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA40SSKU4F2 specifications (PDF).
MQ Power WhisperWatt Super-Silent — 36 kVA Three-Phase Diesel Generator. The DCA40SSKU4F2 is a three-phase WhisperWatt Super-Silent generator with a Kubota Tier 4 Final diesel, patented open-delta winding for precise voltage control, and a quiet weatherproof enclosure with 24-hour fuel tank.
Unit Specifications
| Prime Rating | 28.8 kW / 36 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
Engine Specifications
| Make / Model | Kubota |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailers: TRLR45 (tandem-axle, electric or hydraulic brakes) or TRLR75XF2 100-gallon extended-fuel trailer.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
