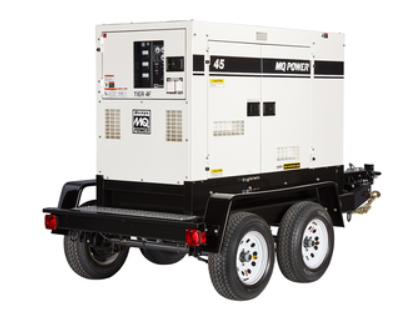

Multiquip MQ DCA45SSIU4F Generator 45kVA Three Phase Isuzu Tier 4 Final Env
Multiquip DCA45SSIU4F 45 kVA WhisperWatt mobile diesel generator — 36 kW / 45 kVA prime, 40 kW / 50 kVA standby, 66 dB(A) at 23 feet (at full load), Isuzu 4LE2X, 79.2 gal tank, 2,335 lbs. (1,059 kg) dry.
The Multiquip DCA45SSIU4F is a WhisperWatt Super Silent mobile diesel generator rated 45 kVA prime, built around an Isuzu 4LE2X. Multiquip rates the enclosure at 66 dB(A) at 23 feet (at full load). Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 36 kW / 45 kVA. Standby: 40 kW / 50 kVA.
- Output. 3-phase: 208Y/120, 220Y/127, 240Y/139, 416Y/240, 440Y/254, 480Y/277 (product page lists switchable 208, 220, 240, 416, 440, 480V). Single-phase: 240/120. 1-phase 120V: 100 A; 1-phase 240V: 50 A; 3-phase 240V: 108 A; 3-phase 480V: 54 A. 60 Hz.
- Engine. Isuzu 4LE2X, EPA Tier 4 Final Certified, 4, 133.0 in3 (2179 cc), 65.7 hp (49 kW) @ 1800 rpm.
- Fuel. 79.2 gal tank. Full load 2.93 gph; 3/4 load 2.20 gph; 1/2 load 1.60 gph; 1/4 load 1.04 gph.
- Sound. 66 dB(A) at 23 feet (at full load).
- Electrics. Alternator Brushless, open delta design, with automatic voltage regulator (AVR), controller ECU755 microprocessor-based digital generator controller.
- Size and weight. Skid-mount: 147.34 in L x 90.75 in W x 65.25 in H (3742.44 x 2305.05 x 1657.35 mm). NOTE: product page publishes conflicting figures, 147.33 x 66.25 x 23.2 in, 2,335 lbs. (1,059 kg) dry, 2,974 lbs. (1,349 kg) wet. NOTE: product page publishes 1,056 lb (479 kg) 'operating weight without fuel', which conflicts with the data sheet operating.
- Emissions. EPA Tier 4 Final Certified.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Isuzu 4LE2X.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA45SSIU4F specifications (PDF).
MQ Power WhisperWatt Super-Silent — 45 kVA Single/Three-Phase Diesel Generator. The DCA45SSIU4F delivers a prime rating of 36 kW (45 kVA) and standby of 40 kW (50 kVA). A patented open-delta winding gives precise voltage control and strong motor-starting; an electronic governor holds frequency to ±0.25%. E-coated, powder-coated weatherproof steel enclosure with integrated 24-hour fuel tank and fluid containment.
Unit Specifications
| Prime Rating | 36 kW / 45 kVA |
| Standby Rating | 40 kW / 50 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
Engine Specifications
| Make / Model | Isuzu |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailers: TRLR45 (tandem-axle, electric or hydraulic brakes) or TRLR75XF2 100-gallon extended-fuel trailer.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
Unit Specifications
| Prime Rating | 36 kW / 45 kVA |
| Standby Rating | 40 kW / 50 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V Switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V Switchable |
Engine Specifications
| Make/Model | Isuzu / 4LE2X |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water cooled, direct injection, turbocharged, charge air cooled and EGR |
| Gross Engine Power Output | 65.7 bhp / 49 kW |
| Fuel Tank Capacity | 79.2 gal / 300 L |
Dimensions
| Overall Length | 147.33 in / 3,742 mm |
| Overall Width | 66.25 in / 1,657 mm |
| Overall Height | 23.2 in / 590 mm |
| Without Fuel | 1,056 lb / 479 kg |
Features and specifications subject to change without notice. Refer to model-specific data sheet for detailed specifications.
