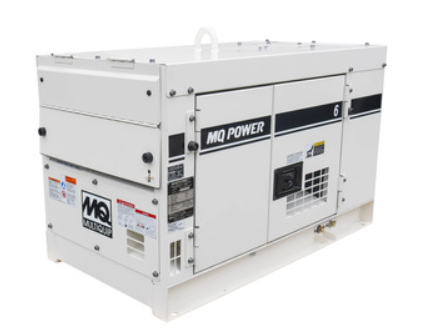

Multiquip MQ DCA6SPX4F Generator 6kW Single Phase Kubota Tier 4 Final
Multiquip DCA6SPX4F 6 kVA WhisperWatt mobile diesel generator — 6 kW / 6 kVA prime, 58 dB(A) at 23 feet at full load, Kubota D1105, 831.1 lbs (377 kg) dry.
The Multiquip DCA6SPX4F is a WhisperWatt Super Silent mobile diesel generator rated 6 kVA prime, built around a Kubota D1105. Multiquip rates the enclosure at 58 dB(A) at 23 feet at full load. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 6 kW / 6 kVA.
- Output. 120/240 V. 120 Volt: 25 x 2; 240 Volt: 25. 60 Hz; frequency regulation +/-2.5% of mean value; governor maintains 60 Hz within 3-5% from no load to full load; voltage regulation +/-1%.
- Engine. Kubota D1105, EPA Tier 4 Final Certified, 3, 68.53 in3 (1123 cc), 16.6 HP (12.4 kW) gross output @ 1800 rpm.
- Fuel. 0.70 gph (2.65 lph) at full load. Fuel: ASTM-D975-No.1 & No.2-D. Oil capacity 1.3 gallons (5.1 liters).
- Sound. 58 dB(A) at 23 feet at full load.
- Electrics. Alternator Revolving field, self-ventilated, drip-proof, single bearing; brushless with automatic voltage regulator; 4-pole field.
- Size and weight. Skid: 48.4 in (1230 mm) L x 29.9 in W x 37.2 in (945 mm) H (data sheet). Product page (generator): 48.4 in L x 25.6 in W x 33.3 in H, 831.1 lbs (377 kg) dry, 859.8 lbs (390 kg) wet operating.
- Emissions. EPA Tier 4 Final Certified; vertical, 4-cycle, liquid cooled diesel engine. Multiquip publishes an exhaust emission data sheet at https://service.multiquip.com/pdfs/DCA6SPX4F_Emission_Data_Sheet_2022.pdf.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Kubota D1105.
That is a naturally aspirated engine, and naturally aspirated diesels lose real output as air thins — the losses become significant above roughly a mile, which is where most of our customers work. Size this one for the elevation it will actually run at, not for sea level.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA6SPX4F specifications (PDF).
MQ Power WhisperWatt Super-Silent — 6 kW Single-Phase Diesel Generator. The DCA6SPX4F is a 6 kW single-phase generator with 1.0 power factor and 120/240V output on a 4-pole field. Its low 1800 rpm engine speed increases fuel economy and lengthens service intervals. A single-side maintenance design gives direct access to all filters, and the comprehensive analog panel includes indicator lamps, volt meter, voltage regulator, hour meter and main GFCI breaker.
Unit Specifications
| Prime Rating | 6 kW |
| Standby Rating | 6 kW |
| Generator RPM | 1800 |
| Voltage - Single Phase | 120/240 V |
| Power Factor | 1.0 |
| No. Poles | 4-pole |
| Frequency | 60 Hz |
| Voltage Regulation | ±1% |
| Sound Level (Full Load at 23 ft.) | 58 dB(A) |
Engine Specifications
| Make / Model | Kubota |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | Revolving field, self-ventilated, drip-proof, single bearing |
Dimensions & Weights
| Overall Length | 48.4 in / 1230 mm |
| Overall Width | 25.6 in / 650 mm |
| Overall Height | 33.3 in / 845 mm |
| Operating Weight | 859.8 lb / 390 kg |
| Shipping Weight | 831.1 lb / 377 kg |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: TRLRMPXF multipurpose (28-gallon aux-fuel option available).
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
