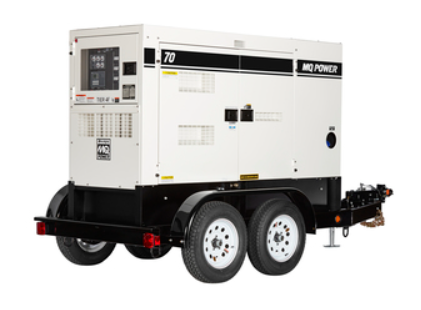

Multiquip MQ DCA70SSIU4F Generator 70kVA Three Phase Isuzu Tier 4 Final Env
Multiquip DCA70SSIU4F 70 kVA WhisperWatt mobile diesel generator — 56 kW / 70 kVA prime, 62 kW / 77 kVA standby, 65 dB(A) at 23 feet, Isuzu BR-4JJ1X, 103 gal tank, 3,326 lbs. (1,509 kg) dry.
The Multiquip DCA70SSIU4F is a WhisperWatt Super Silent mobile diesel generator rated 70 kVA prime, built around an Isuzu BR-4JJ1X. Multiquip rates the enclosure at 65 dB(A) at 23 feet. Built for rental fleets and contractors — equipment that gets moved constantly and maintained on a schedule.
Specifications
- Prime rating. 56 kW / 70 kVA. Standby: 62 kW / 77 kVA.
- Output. 3-phase: 208Y/120, 220Y/127, 240Y/139, 416Y/240, 440Y/254, 480Y/277 (product page also lists 460V; switchable). Single-phase: 240/120. 1-phase 120V: 155.4 A; 1-phase 240V: 77.8 A; 3-phase 240V: 168 A; 3-phase 480V: 84 A. 60 Hz.
- Engine. Isuzu BR-4JJ1X, EPA Tier 4 Final Certified, 4, 183.0 in3 (2999 cc), 95.2 hp (71 kW) @ 1800 rpm.
- Fuel. 103 gal tank. Full load 4.4 gph; 3/4 load 3.5 gph; 1/2 load 2.6 gph; 1/4 load 1.7 gph.
- Sound. 65 dB(A) at 23 feet.
- Electrics. Alternator Brushless alternator with automatic voltage regulator (AVR), controller ECU845 microprocessor-based digital generator controller.
- Size and weight. Skid-mount: 165.26 in L x 96.57 in W x 85.12 in H (4197 x 2453 x 2162 mm). NOTE: product page publishes conflicting figures, 169.4 x 72.5 x 24.2 in, 3,326 lbs. (1,509 kg) dry, 4,207 lbs. (1,908 kg) wet operating.
- DEF. 7.4 gallons (28 liters).
- Emissions. EPA Tier 4 Final Certified.
Altitude
Multiquip does not publish a derate figure for the DCA line — not on the data sheets, not on the product pages, and not in the manuals we could reach. We are not going to invent one. What Multiquip does publish is the engine: this machine runs a Isuzu BR-4JJ1X.
That is a turbocharged engine, which holds its rating at elevation far better than a naturally aspirated one because the turbo restores intake density that thin air takes away. On the Front Range that difference is worth real money.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation and the duty and we will get the derate in writing from Multiquip before you order, rather than after.
Data sheet. Multiquip DCA70SSIU4F specifications (PDF).
MQ Power WhisperWatt Super-Silent — 70 kVA Single/Three-Phase Diesel Generator. The DCA70SSIU4F delivers a prime rating of 56 kW (70 kVA) and standby of 62 kW (77 kVA). Patented open-delta winding for precise voltage control and superior motor-starting; electronic governor holds frequency to ±0.25%. Powder-coated / e-coated weatherproof steel housing keeps operating noise to 65 dB(A); auto start-stop for remote operation.
Unit Specifications
| Prime Rating | 56 kW / 70 kVA |
| Standby Rating | 62 kW / 77 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 460, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Sound Level | 65 dB(A) |
Engine Specifications
| Make / Model | Isuzu BR-4JJ1X |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, DOC, SCR |
| Gross Engine Power | 95.2 bhp / 71 kW |
| Fuel Tank Capacity | 103 gal / 390 L |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailers: TRLR70US (tandem-axle, electric or hydraulic brakes) or TRLR75XF2 100-gallon extended-fuel trailer.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
Unit Specifications
| Prime Rating | 56 kW / 70 kVA |
| Standby Rating | 62 kW / 77 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 460, 480V Switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V Switchable |
Engine Specifications
| Make/Model | Isuzu / BR-4JJ1X |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water cooled, direct injection, turbocharged, DOC, SCR |
| Gross Engine Power Output | 95.2 bhp / 71 kW |
| Fuel Tank Capacity | 103 gal / 390 L |
Dimensions
| Overall Length | 169.4 in / 4,938 mm |
| Overall Width | 72.5 in / 1,841.5 mm |
| Overall Height | 24.2 in / 615 mm |
| Without Fuel | 1,089 lb / 493.96 kg |
Features and specifications subject to change without notice. Refer to model-specific data sheet for detailed specifications.
