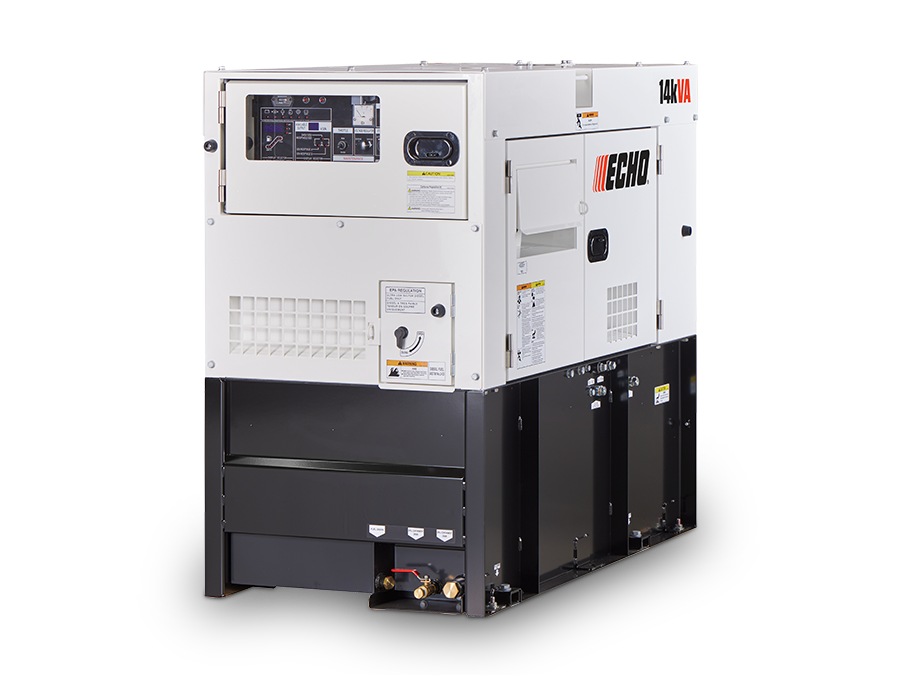

Echo DGK14F — 14 kVA Industrial Diesel Generator
The Echo DGK14F delivers 14 kW (1-phase) continuous output at 58 dB(A) measured at 23 feet, powered by a Kubota D1503, 3 cylinder rated 19.5 hp @ 1800 rpm. The 34.3-gallon tank gives roughly 25 hours of runtime at full load, or about 48 hours at half load.
Specifications
| Continuous output | 14 kW (1-phase) |
| Standby output | 14.7 kW |
| Voltage | 120 / 240V, 1-phase |
| Amperage | 58.3A x 2 @ 120V, 58.3A @ 240V |
| Sound level (no load, 23 ft) | 58 dB(A) |
| Sound level (full load, 23 ft) | 60 dB(A) |
| Engine | Kubota D1503, 3 cylinder |
| Engine design | Indirect injection |
| Displacement | 91 cu. in. (1.499 L) |
| Rated output | 19.5 hp @ 1800 rpm |
| Rated speed | 1800 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 34.3 gal |
| Fuel consumption (full load) | 1.37 gal/hr |
| Fuel consumption (1/2 load) | 0.71 gal/hr |
| Runtime at full load | ~25 hours |
| Dimensions (L x W x H) | 55" x 28" x 47" |
| Dry weight | 1,378 lbs |
| Trailered dimensions | 101.34" x 55.0" x 55.9" |
| Trailered dry weight | 1,738 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Available accessories

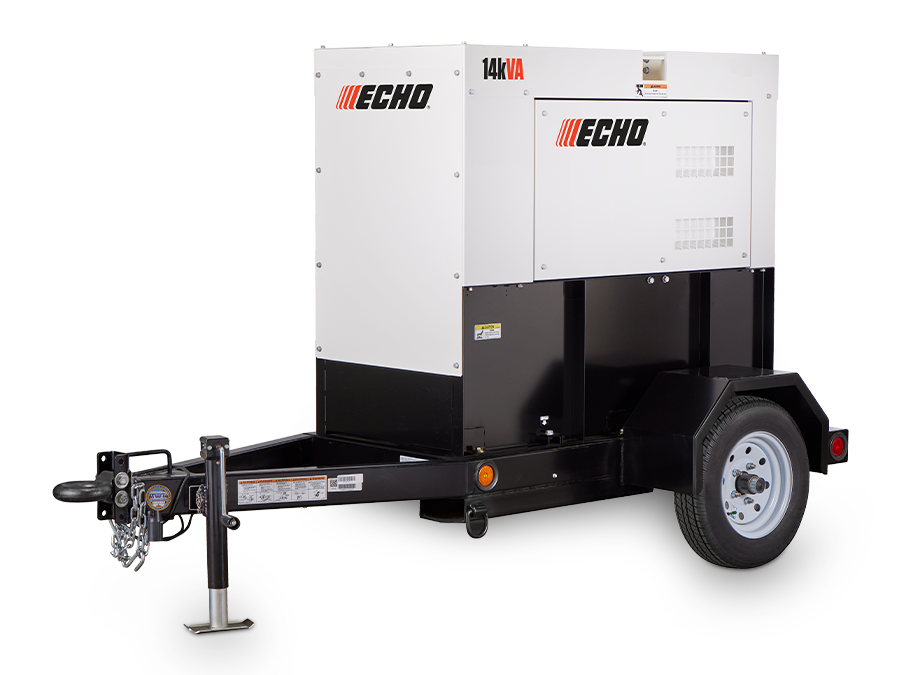

- Trailer
- Block heater
- Battery charger
