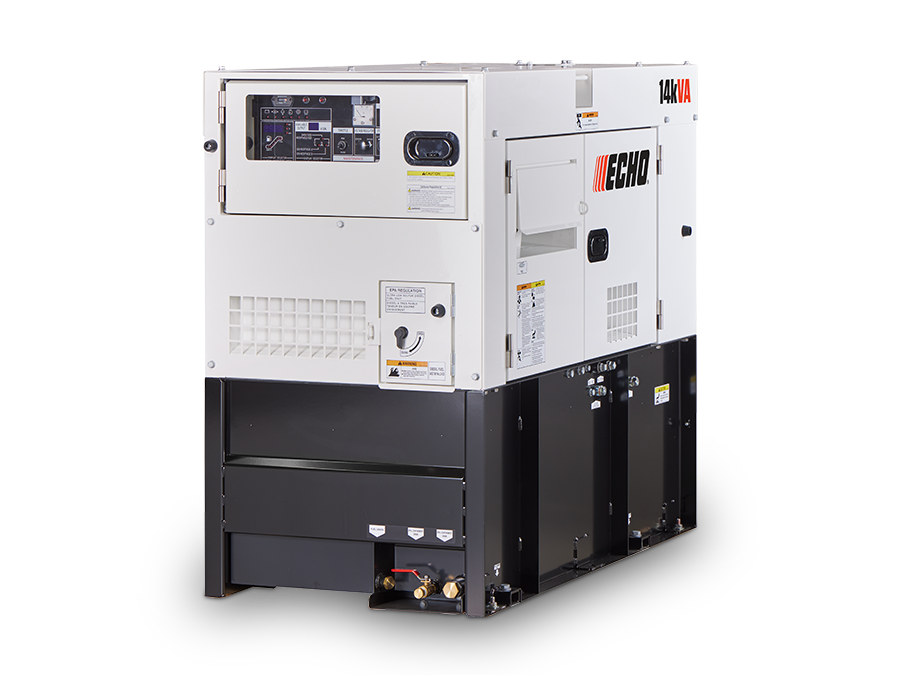

Echo DGK14F Diesel Generator
Echo DGK14F 14 kVA industrial diesel generator — 14 kW (1-phase) continuous, 58 dB(A) at 23 ft, Kubota D1503, 3 cylinder, 25 hr runtime at full load.
The ECHO DGK14F is a Tier 4 Final mobile diesel generator rated 14 kW (14 kVA) continuous single-phase, built around a Kubota D1503 3-cylinder engine in an enclosure ECHO rates at 58 dB(A) at no load, measured at 23 ft. It is designed for rental fleets and contractors — equipment that gets used hard, moved often, and maintained on a schedule.
Altitude
ECHO does not publish a derate figure for this machine, and the sell sheet describes the engine only as indirect injection without stating whether it is naturally aspirated or turbocharged. We are not going to guess at either one on a spec page.
Any diesel loses output as air thins; the only question is how much, and that is a question with a real answer rather than a rule of thumb.
We are at 6,035 ft in Colorado Springs and we sell into sites well above that. Tell us the elevation the machine will actually work at and we will get the derate in writing from ECHO before you order, rather than after you find out. A set that is quietly short of its nameplate at 8,000 ft is the most common and most expensive mistake in this business, and it is entirely avoidable.
Options. Trailer, block heater, battery charger, cam locks, fire extinguisher and shore power are factory options ordered with the unit — ask and we will quote the machine as you actually want it configured.
Specifications
| Continuous output | 14 kW (1-phase) |
| Standby output | 14.7 kW |
| Voltage | 120 / 240V, 1-phase |
| Amperage | 58.3A x 2 @ 120V, 58.3A @ 240V |
| Sound level (no load, 23 ft) | 58 dB(A) |
| Sound level (full load, 23 ft) | 60 dB(A) |
| Engine | Kubota D1503, 3 cylinder |
| Engine design | Indirect injection |
| Displacement | 91 cu. in. (1.499 L) |
| Rated output | 19.5 hp @ 1800 rpm |
| Rated speed | 1800 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 34.3 gal |
| Fuel consumption (full load) | 1.37 gal/hr |
| Fuel consumption (1/2 load) | 0.71 gal/hr |
| Runtime at full load | ~25 hours |
| Dimensions (L x W x H) | 55" x 28" x 47" |
| Dry weight | 1,378 lbs |
| Trailered dimensions | 101.34" x 55.0" x 55.9" |
| Trailered dry weight | 1,738 lbs |
Features and specifications
- Kubota D1503 diesel. Indirect injection, 91 cu in (1.499 L), 19.5 hp @ 1800 rpm. US EPA Tier 4 Final.
- Standby rating. 14.7 kW (14.7 kVA), above the continuous rating, for backup duty rather than prime power.
- Output. 120 / 240 V switchable single-phase. 58.3 A x2 at 120 V, 58.3 A at 240 V. Frequency regulation 60 Hz ±0.25%.
- Fuel. 34.3 gal (130 L) internal. Burn is 1.37 gal/hr at full load, 1.00 at 3/4, 0.71 at 1/2 and 0.50 at 1/4 — about 25 hours at full load on the internal tank, less as you load it harder than a rental set usually runs.
- Sound. 58 dB(A) at no load and 60 dB(A) at full load at 23 ft, using a tuned muffler, longer exhaust and air dams that double the cooling path rather than insulation alone.
- Size and weight. 55" x 28" x 47", 1,378 lb dry. Trailered: 101.34" x 55.0" x 55.9", 1,738 lb.
- Alternator. Revolving field brushless AC. 12 V DC electric starting.
Six outlets, including two 120 V GFCI 5-20R, a 240 V L14-30R twist-lock and a 240/120 V 50 A.
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Available accessories
- No Brake Trailer — $3,581
- Battery Charger — $509
- Block Heater — $449
- Solar Charger — $333
- Shore Power A/C — $125
- Fire Extinguisher — $74
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
