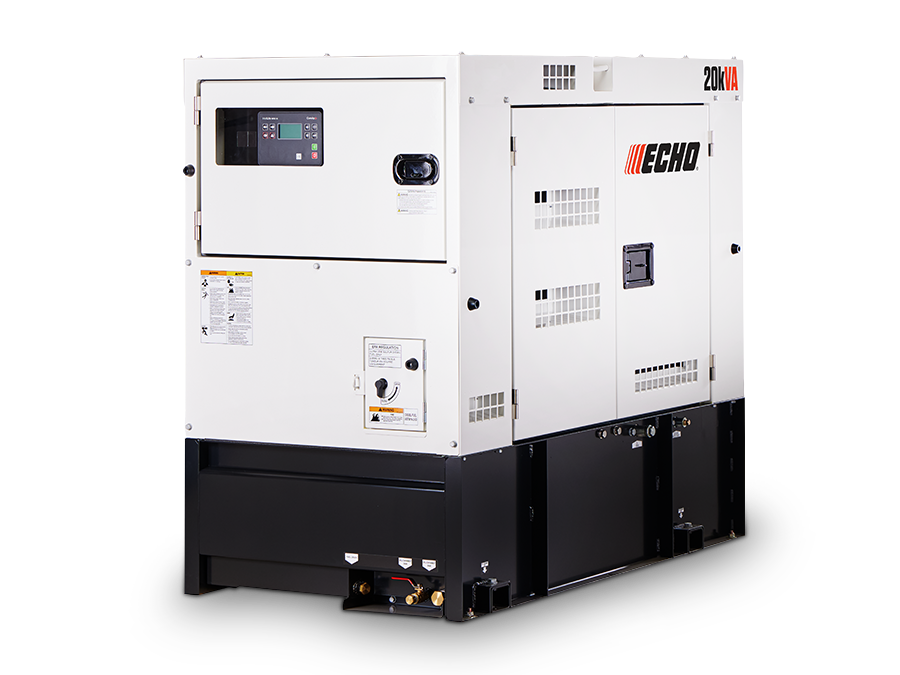

Echo DGK20FS Diesel Generator
Echo DGK20FS 20 kVA industrial diesel generator — 20 kW (1-phase) continuous, 62 dB(A) at 23 ft, Isuzu 4LE2T, 4 cylinder, 32 hr runtime at full load.
Echo DGK20FS — 20 kVA Industrial Diesel Generator
The Echo DGK20FS delivers 20 kW (1-phase) continuous output at 62 dB(A) measured at 23 feet, powered by a Isuzu 4LE2T, 4 cylinder rated 33 hp @ 1800 rpm. The 51.5-gallon tank gives roughly 32 hours of runtime at full load, or about 57 hours at half load.
Specifications
| Continuous output | 20 kW (1-phase) |
| Standby output | 22 kW |
| Voltage | 120 / 240V, 1-phase |
| Amperage | 83.3A @ 120V and 240V (zig-zag-w) |
| Sound level (no load, 23 ft) | 62 dB(A) |
| Sound level (full load, 23 ft) | 65 dB(A) |
| Engine | Isuzu 4LE2T, 4 cylinder |
| Engine design | Direct injection, turbocharged |
| Displacement | 133 cu. in. (2.179 L) |
| Rated output | 33 hp @ 1800 rpm |
| Rated speed | 1800 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 51.5 gal |
| Fuel consumption (full load) | 1.6 gal/hr |
| Fuel consumption (1/2 load) | 0.9 gal/hr |
| Runtime at full load | ~32 hours |
| Dimensions (L x W x H) | 63" x 33" x 55" |
| Dry weight | 1,929 lbs |
| Trailered dimensions | 116.54" x 60.0" x 65.74" |
| Trailered dry weight | 2,870 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Optional telematics
Cloud-based monitoring and unit control is available, with 4G, 3G, GPRS or Ethernet communication, geofencing and tracking, and service timers.
Available accessories
- Trailer
- Block heater
- Battery charger
- Cam-loks
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
