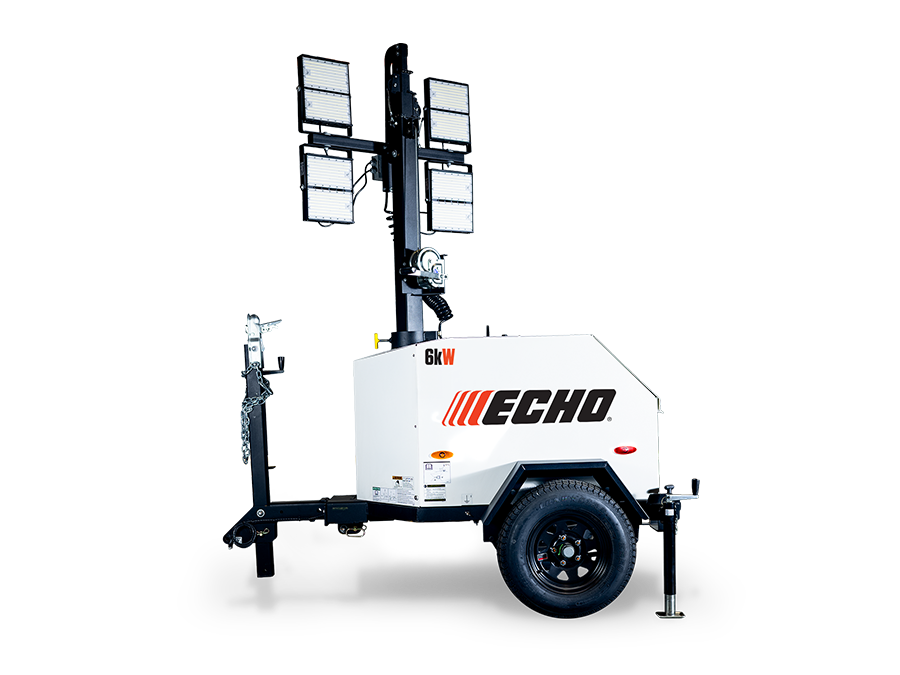

Echo DLT6 Light Tower
Echo DLT6 LED light tower — LED 4 x 320W at 217,600 lm, 22.20 ft. mast, Kubota D-1105 Diesel, 130 hr runtime on 45 gal.
Echo DLT6 — LED Light Tower
The Echo DLT6 pairs four 320W LED fixtures — 217,600 lm total — with a 22.20 ft. mast and a Kubota D-1105 Diesel. The 45-gallon tank gives a stated 130 hours of runtime with the lights on, and the onboard generator leaves 4.70 kW (with lights on) available for tools and site power.
Specifications
| Lamps | LED 4 x 320W |
| Light output | 217,600 lm |
| Mast height | 22.20 ft. (6.77 m) |
| Generator | 6.0 kW brushless, 60 Hz |
| Available power (lights on) | 4.70 kW (with lights on) |
| Receptacles | (1) GFI duplex 20A / 120V, (1) twist-lock 30A / 240V |
| Engine | Kubota D-1105 Diesel |
| Fuel capacity | 45 gal (170 L) |
| Runtime (lights on) | 130 hours |
| Dimensions (stowed) | 85.00" L x 59.00" W x 97.00" H |
| Width — deployed | 128.00 in. (325.12 cm) |
| Width — operating | 136.00 in. (345.44 cm) |
| Length — overall | 116.00 in. (294.64 cm) |
| Cabinet height | 48.00 in. (121.92 cm) |
| Track width | 49.00 in. (124.46 cm) |
| Wheel size | 13.00 in. (33.02 cm) |
| Axle rating | 2,200 lbs (997.90 kg) |
| Tongue weight (travel) | 210 lbs (95.25 kg) |
| Gross weight (no fuel) | 1,600 lbs |
| Units per 53' flatbed | 17 |
Built for the jobsite
Every Echo light tower carries the same lighting package -- four 320W LED fixtures putting out 217,600 lumens -- so the choice between models is about generator capacity and runtime, not brightness. Heavy-gauge steel covers open fully for service, a manual self-braking winch with mast brake and 359° rotation places the light precisely, and shore power is standard on every unit so the tower can run on 120V AC 15A without starting the engine. High-water-temperature and low-oil auto shutdown protect the engine, and DOT-approved running, stop and turn lights keep it road legal.
Available accessories
- Auto start with sunrise/sunset settings
- Electric lift
- 800 CCA battery
- Engine block heater for cold weather starts
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
