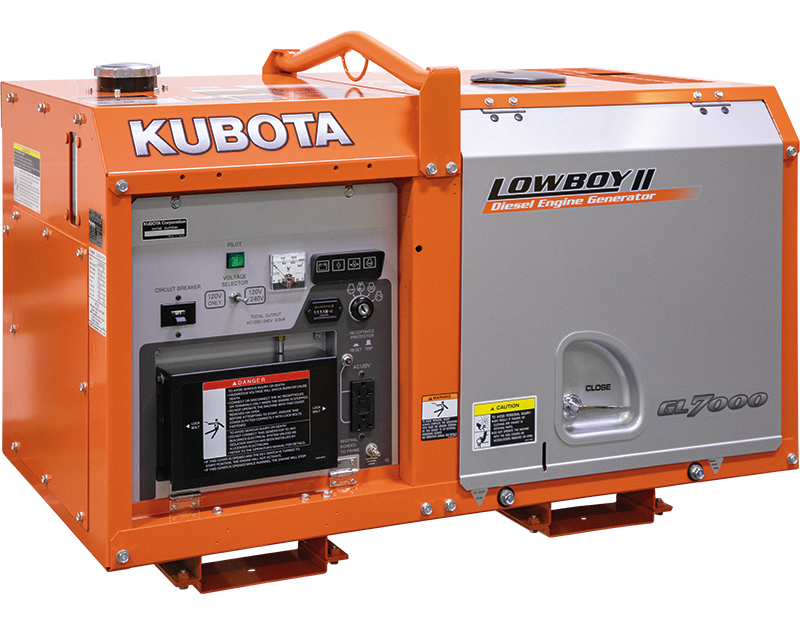

Kubota GL7000-TM Lowboy II 7kW Diesel Generator (7000W, Terminal Lugs)

The Kubota GL7000-TM is a Lowboy II liquid-cooled diesel generator rated 7 kW standby and 6.5 kW prime, built around Kubota's own Kubota Z482 2-cylinder engine. Kubota builds the engine and the generator, which is the main reason these hold up in rental and contractor service where a machine gets used hard and maintained on a schedule rather than on inspection.

Features and benefits

• Kubota Z482 diesel. 2-cylinder, liquid-cooled, with a 200-hour maintenance interval.
• Quiet for a diesel. 66 dB(A) at 23 ft, using a large-capacity radiator and muffler rather than just more insulation.
• Long run time. 7.39 gal tank gives 10 hours at full load, 20 hours at 25%.
• Single-side service. Routine maintenance items are reached from one access panel instead of walking around the machine.
• Protected automatically. Shutdown on high coolant temperature or low oil pressure, and double circuit protectors on the 120 V receptacles.
• Built to be moved. One-point lifting eye, 577 lb dry, 42.0 x 24.3 x 27.5 in.
• Output. 120/240 V single phase, 54.2 A at 120 V / 27.1 A at 240 V.

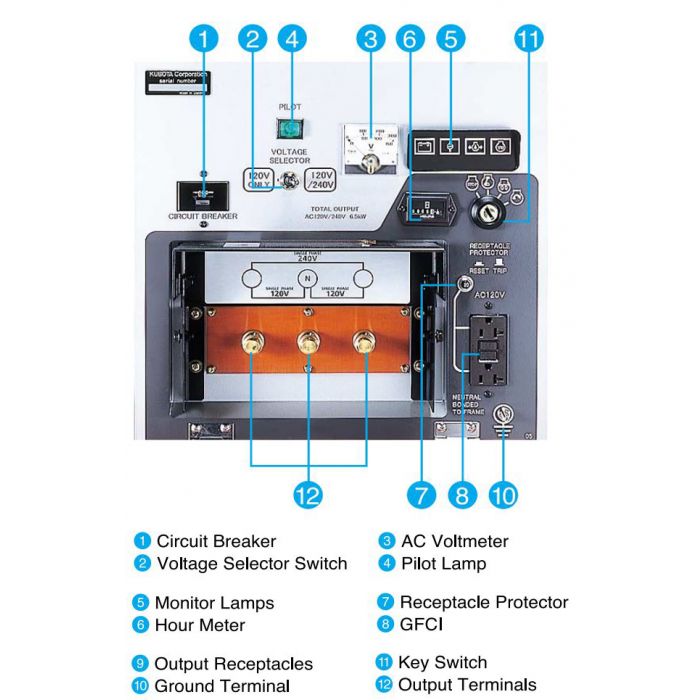

Terminal-lug (TM) model. Output lands on terminals for hard-wiring into a panel or transfer switch, rather than on plug-in receptacles. This is the version for a permanent or semi-permanent installation; if you want to plug cords straight in, order the receptacle version instead.

Altitude — read this before sizing

Kubota's own service guidance derates these naturally aspirated engines by about 1.5% for every 100 m (328 ft) of elevation, with losses beginning near 5,000 ft. Along the Front Range that is not a rounding error:

• Denver, ~5,280 ft: about 24% derate — roughly 5.3 kW available instead of 7 kW.
• Colorado Springs, ~6,035 ft: about 28% derate — roughly 5.1 kW available instead of 7 kW.
• Monument / Palmer Divide, ~7,000 ft: about 32% derate — roughly 4.8 kW available instead of 7 kW.

Add roughly 0.5% for every 5 °C above 25 °C on a hot afternoon, and Kubota recommends running at 80% of capacity for continuous duty. Rough idle, extra smoke or an unusual exhaust smell at elevation are normal responses to thin air rather than faults — and Kubota states plainly that modifications made to compensate are not warrantable and void the warranty. The answer is to size the machine for the elevation it will actually work at, not to adjust it afterwards. Tell us the site elevation and we will size against these numbers.
