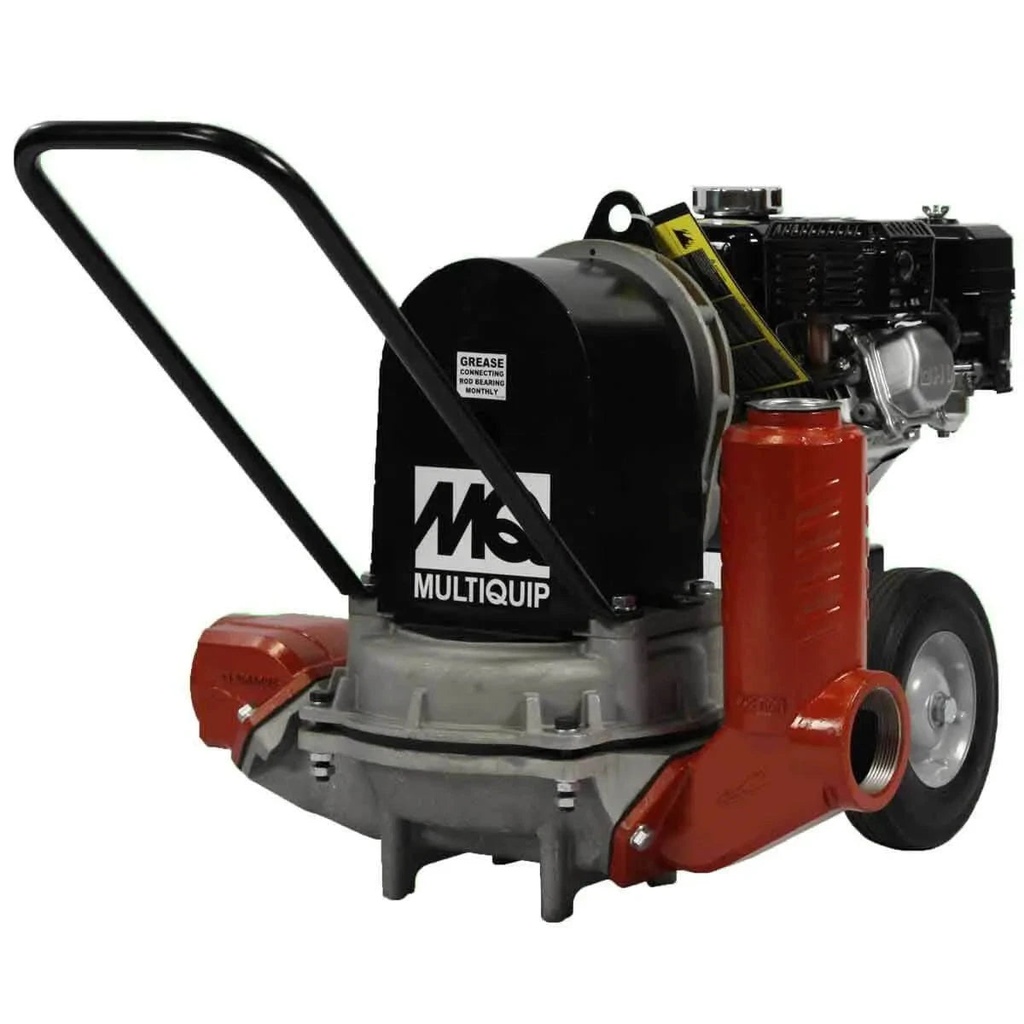

Multiquip MQ MQD2HA Pump-Diaphragm 2" Honda GX120 Ser. A
Specifications
| Displacement | AIR-COOLED, 4 STROKE, SINGLE |
| Fuel Tank Capacity | 0.7 GALLONS (2.65 LITERS) |
| Fuel Consumption | 0.26 GPH (0.98 LPH) |
| Dry Weight | 140.0 LB. (63.5 KG) |
| Dimensions | 39.0 X 25.68 X 27.53 IN. |
Source: Multiquip MQD2HA data sheet. Specifications subject to change.
Engine / Motor Specifications
| Max. Water Capacity | 50 gpm / 189 lpm |
| Max. Lift | 25 ft / 7.6 m |
| Max. Head | 25 ft / 7.6 m |
| Fuel Tank Capacity | 2.1 qt / 2 L |
| Optional Wheel Kit | Wheel Kit included with Pump |
Dimensions & Weights
| Overall Length | 27.0 in / 686 mm |
| Overall Width | 18.5 in / 470 mm |
| Overall Height | 20.5 in / 521 mm |
| Operating Weight | 125 lb / 57 kg |
Features and specifications are subject to change without notice.
