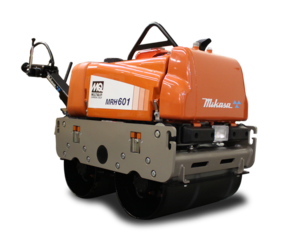

Multiquip MQ MRH601DS Roller 2400 lb.force Kubota EA330E3
Overview
The Multiquip Mikasa MRH601DS walk-behind tandem drum roller compacts asphalt and sub-base in a narrow profile with hydrostatic drive. It delivers 2,428 lbf (10.8 kN) of centrifugal force across a 25.6 in (650 mm) drum width.
- Water tank and spray bars
- Hydrostatic drive
- Narrow profile for tight access
- External vibrator
- Front bumper and work light
Technical Specifications
| Centrifugal Force | 2,428 lbf (10.8 kN) |
| Vibration Frequency | 3,300 VPM (55.3 Hz) |
| Drum Width | 25.6 in (650 mm) |
| Engine | Kubota EA330-E3 (diesel) |
| Rated Power | 6.2 HP (4.6 kW) |
| Start Method | Electric / Recoil |
| Operating Weight | 1,248 lb (566 kg) |
Unit Specifications
| Compaction Force | 2428 lb / 10.8 kN |
| Frequency | 3,300 VPM / 55 Hz |
| Travel Speed | 0-1.86 mph / 0-3 kph |
| Water Tank Capacity | 7.9 gal / 29.9 L |
Mixer Specifications
| Front Drum Width | 25.6 in / 650 mm |
| Rear Drum Width | 25.6 in / 650 mm |
Dimensions & Weights
| Overall Length | 89.2 in / 2266 mm |
| Overall Width | 27.2 in / 691 mm |
| Overall Height | 47 in / 1194 mm |
| Operating Weight | 1248 lb / 566 kg |
Features and specifications are subject to change without notice.
