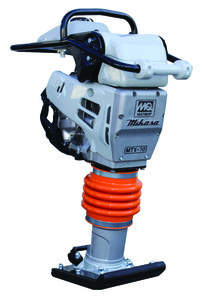

Multiquip MQ MTX70HDR Rammer Honda GXR120 Diaphragm Carb
Overview
The Multiquip Mikasa MTX70HDR is a Honda-powered vertical rammer built for compacting granular and mixed soils in trenches, footings, and other confined areas. Its 4-cycle Honda GXR120 engine delivers 3,350 lbf (14.9 kN) of impact force at 690 blows per minute for dependable, high-output compaction.
- 4-cycle Honda GXR120 engine — no fuel mixing, easy starts
- MTX-series anti-vibration handle reduces operator fatigue
- Cyclone air filtration system for extended engine life in dusty conditions
- Cam-type clutch with combination tachometer / hour meter
- Optional shoe sizes and extensions available
Technical Specifications
| Impact Force | 3,350 lbf (14.9 kN) |
| Blows per Minute | 690 |
| Engine | Honda GXR120 (4-cycle gasoline) |
| Rated Power | 3.6 HP (2.7 kW) |
| Shoe Width | 11.2 in (285 mm) |
| Operating Weight | 165 lb (75 kg) |
| Travel Speed | 55.8 ft/min (17 m/min) |
| Stroke / Jump Height | 3.2 in (80 mm) |
Dimensions & Weights
| Blows Per Min. | Up to 690 |
| Impact Force | 3,350 lbf / 14.9 kN |
| Shoe Jump Height | 3.1 in / 79 mm |
| Shoe Dimensions (LxW) | 13.4 x 11.2 in / 340 x 285 mm |
| Travel Speed Per Min. | 55.8 ft / 17 m |
| Fuel Tank Capacity | 2.7 qt / 2.5 L |
Engine / Motor Specifications
| Engine Make/Model | Honda GXR120 |
| Start Method | Recoil |
| Engine Power | 3.6 HP / 2.7 kW |
| Engine RPM | 4100 |
| Fuel Type | Gasoline |
Features and specifications are subject to change without notice.
