Multiquip MQ MVCE64VBW Fwd Plate Electric Bare wtr tnk 14 wide
Overview

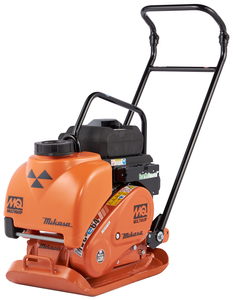

The Multiquip Mikasa MVCE64VBW is a battery-powered plate compactor delivering emission-free, low-noise compaction for indoor and noise-sensitive job sites. It generates 2,271 lbf (10.1 kN) of centrifugal force at 5,600 VPM.
- 100% battery powered — zero emissions, ultra quiet
- Electric chassis for lower maintenance and downtime
- Reduced hand-arm vibration versus gas equivalents
- Push-button operation
- Standard water tank; wheel kit on select models
Technical Specifications
| Centrifugal Force | 2,271 lbf (10.1 kN) |
| Exciter Speed | 5,600 VPM (93 Hz) |
| Max Forward Speed | 79 ft/min (24 m/min) |
| Plate Size | 13.8 x 22.4 in (350 x 570 mm) |
| Motor | Honda GXE2.0H (DC brushless) |
| Rated Power | 2.4 HP (1.8 kW) |
| RPM | 3,600 |
| Operating Weight (with battery) | 194 lb (88 kg) |
| Operating Time | ~30 min |
| Operating Range per Charge | 3,802 ft² |
| Hand-Arm Vibration | 2.4 m/s² |
| Battery / Charger | MCB7210 / MCB0190 (sold separately) |
Specifications
| Centrifugal Force | 2271 lbf / 10.1 kN |
| Exciter Speed | 5600 VPM |
| Plate Size | 13.8 x 22.4 in / 350 x 570 mm |
| Max Forward Speed / Per Min. | 82 ft / 25 m |
| Operating Range per Battery Charge | Up to 3,802 ft² |
| Operating Time | Up to 30 min |
Dimensions & Weights
| Overall Length | 35.6 in / 905 mm |
| Overall Width | 13.8 in / 350 mm |
| Overall Height | 39.4 in / 1000 mm |
| Operating Weight | 194 lb / 88 kg |
Engine / Motor Specifications
| Electric Motor Make/Model | Honda GXE2.0H |
| Phase | DC Brushless |
| Electric Motor Power | 2.4 HP |
Features and specifications are subject to change without notice.
