Multiquip MQ MVCE82VBW Fwd PLT GBX xbatt/chgr wtr tnk 18" plt
Overview

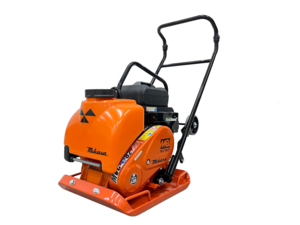

The Multiquip Mikasa MVCE82VBW is a battery-powered plate compactor delivering emission-free, low-noise compaction for indoor and noise-sensitive job sites. It generates 3,080 lbf (13.7 kN) of centrifugal force at 6,000 VPM.
- 100% battery powered — zero emissions, ultra quiet
- Electric chassis for lower maintenance and downtime
- Reduced hand-arm vibration versus gas equivalents
- Push-button operation
- Standard water tank; wheel kit on select models
Technical Specifications
| Centrifugal Force | 3,080 lbf (13.7 kN) |
| Exciter Speed | 6,000 VPM (100 Hz) |
| Max Forward Speed | 82 ft/min (25 m/min) |
| Plate Size | 17.7 in (450 mm) |
| Motor | Honda GXE2.0H (3-phase DC brushless) |
| Rated Power | 2.4 HP (1.8 kW) |
| RPM | 3,600 |
| Operating Weight (with battery) | 198 lb (90 kg) |
| Operating Time | ~25 min |
| Battery / Charger | MCB7210 / MCB0190 (sold separately) |
Specifications
| Centrifugal Force | 3080 lbf / 13.7 kN |
| Exciter Speed | 6000 VPM |
| Plate Size | 17.7 in / 450 mm |
| Max Forward Speed / Per Min. | 82 ft / 25 m |
| Water Tank Capacity | 11.6 qt / 10.98 L |
| Operating Time | Approx. 25 min |
Dimensions & Weights
| Overall Length | 38.2 in / 970 mm |
| Overall Width | 17.7 in / 450 mm |
| Overall Height | 38.2 in / 970 mm |
| Operating Weight | 198 lb / 90 kg |
Engine / Motor Specifications
| Electric Motor Make/Model | Honda GXE2.0H |
| Electric Motor Power | 2.4 HP |
| Phase | Three-phase BRUSHLESS DC Motor |
Features and specifications are subject to change without notice.
