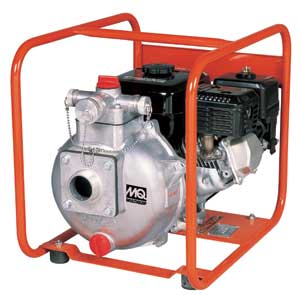

Multiquip MQ QP205SHLF Pump QP205SH Less Frame WT Series
Specifications
| Discharge | port rotates 180º for hose |
| Displacement | AIR-COOLED, 4 STROKE, SINGLE |
| Fuel Tank Capacity | 0.82 GALLONS (3.1 L) |
| Fuel Consumption | 0.37 GPH (1.4 LPH) |
| Dry Weight | 50.7 LB (23 KG) |
| Dimensions | 18.62 x 15.12 x 14.72 IN |
Source: Multiquip QP205SHLF data sheet. Specifications subject to change.
Engine / Motor Specifications
| Max. Water Capacity | 106 gpm / 401 lpm |
| Max. Lift | 25 ft / 7.6 m |
| Max. Head | 246 ft / 75 m |
| Max. Pressure | 106.4 psi / 734 kPA |
| Fuel Tank Capacity | 3.8 qt / 3.6 L |
| Optional Wheel Kit | UWKA |
Dimensions & Weights
| Overall Length | 20 in / 508 mm |
| Overall Width | 15 in / 381 mm |
| Overall Height | 16.5 in / 419 mm |
| Operating Weight | 64 lb / 29 kg |
Specifications
| Suction Hose - NPT Thread - Male/Female | Inside Diameter / Working Pressure / Wt. |
| HS220 | Suction Hose, 20 feet - 2" / 2" / 75 / 16 (7) |
| HS225 | Suction Hose, 25 feet - 2" / 2" / 75 / 20 (9) |
Suction Hose - NPT Thread w/Quick Couplers - Male/Female
| HSQ220 | Suction Hose, 20 feet - 2" Quick Coupler / 2" / 75 / 18 (8) |
| HSQ225 | Suction Hose, 25 feet - 2" Quick Coupler / 2" / 75 / 22 (10) |
| Discharge Hose - NPT Thread w/ Standard Fittings | Inside Diameter / Working Pressure / Wt. |
| HD1550 | Discharge Hose,50 feet - 1½" / 1.5" / 90 / 13 (6) |
| HDQ1550HP | Discharge Mill Hose, 50' - High Pressure Quick Coupler / 1.5" / 200 / 20 (9) |
| HD250 | Discharge Hose, 50 feet - 2' / 2" / 75 / 16 (7) |
| HD350 | Discharge Hose, 50 feet - 3" / 3" / 60 / 40 (18) |
Discharge Hose - NPT Thread with Quick Couplers
| HDQ1550 | Discharge Hose, 50 feet - 1½" Quick Coupler / 1.5" / 90 / 15 (7) |
| HDQ250 | Discharge Hose, 50 feet - 2" Quick Coupler / 2" / 75 / 19 (9) |
| HDQ350 | Discharge Hose, 50 feet - 3" Quick Coupler / 3" / 60 / 43 (20) |
| Couplers | Wt. |
| A150A | Coupling, 1.5” NPT Female to Cam Lock Male / 1 (.04) |
| A200A | Coupling, 2" NPT to Q-Disconnect, 2" / 1 (.04) |
| A300A | Coupling, 3" NPT to Q-Disconnect, 3" / 1 (.04) |
| Discharge Ports - Convert to Single Discharge Diameter | Wt. |
| KIT205SD | Discharge Manifold Option to Single 2" Output / 3 (1.4) |
| KIT305SD | Discharge Manifold Option to Single 3" Output / 3 (1.4) |
| Fire Hose Nozzle - 1.5" NPT Fire Nozzle, Polycarbonate | Wt. |
| FIRENOZ15 | 1.5" NPT Fire Nozzle, Polycarbonate / 1 (.04) |
Features and specifications are subject to change without notice.
