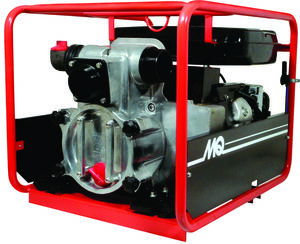

Multiquip MQ QP3THX Pump Trash 3" Silent Pipe Frame
Specifications
| Displacement | AIR-COOLED, 4 STROKE, SINGLE |
| Fuel Tank Capacity | 4.2 GALLONS (16 L) |
| Fuel Consumption | 0.58 GPH (2.2 LPH) |
| Dry Weight | 187.4 lb (85 kg) |
| Dimensions | 29.1 x 23.4 x 22.8 in |
| Sound Level | 71 dB(A) . 4.2 gallon fuel tank provide |
Source: Multiquip QP3THX data sheet. Specifications subject to change.
Engine / Motor Specifications
| Max. Water Capacity | 396 gpm / 1500 lpm |
| Max. Lift | 25 ft / 7.6 m |
| Max. Head | 95 ft / 29 m |
| Max. Pressure | 41.1 psi / 283 kPA |
| Max. Solid Intake | 1.5 in / 37 mm |
| Fuel Tank Capacity | 4.2 Gal / 16 L |
| Optional Wheel Kit | UWKB |
Dimensions & Weights
| Overall Length | 30 in / 762 mm |
| Overall Width | 23.5 in / 597 mm |
| Overall Height | 23 in / 584 mm |
| Operating Weight | 188 lb / 85 kg |
Features and specifications are subject to change without notice.
