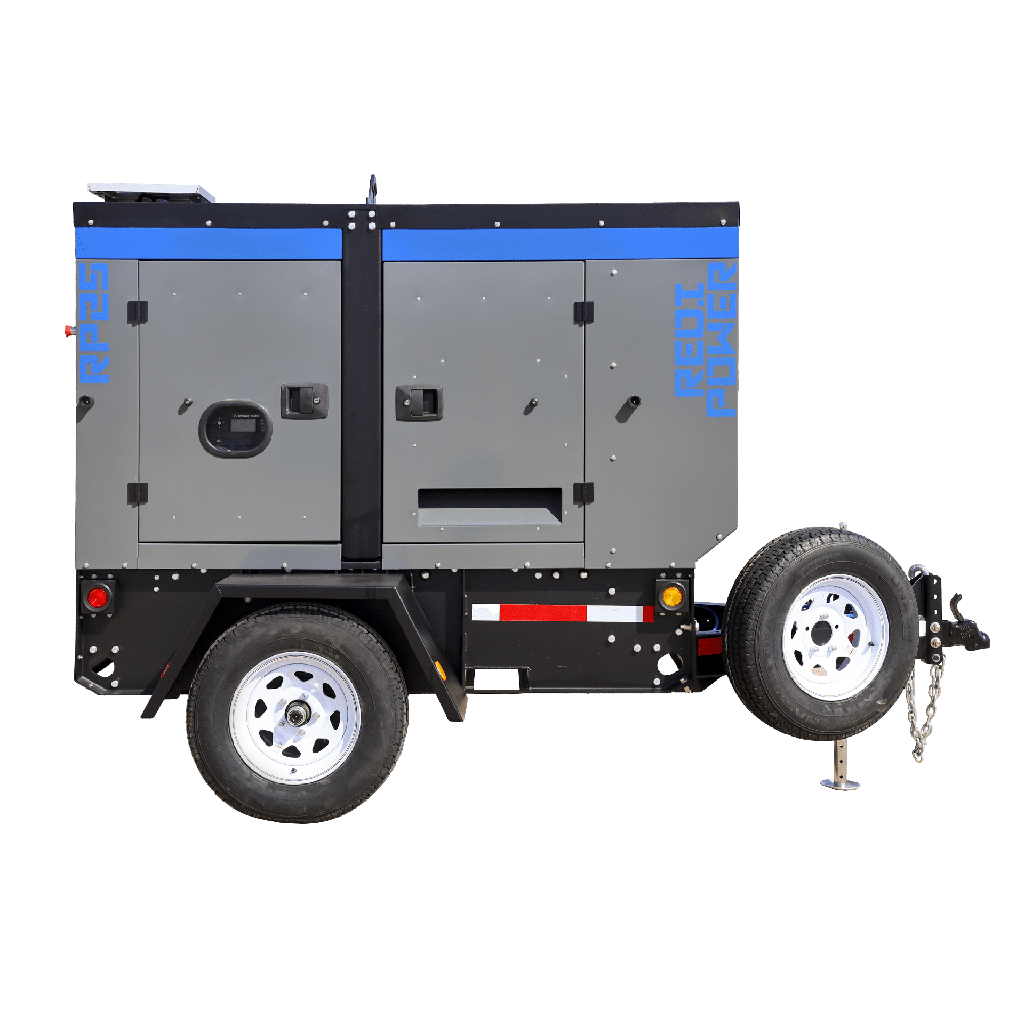

WINCO RP25I4
Our first Tier IV Final mobile diesel generator. We have added new features and more options to suit your specifications.
Contact us for pricing. This product is configured to your specifications. Request a quote and our team will help you build the right solution.
Product Features
RP25
Isuzu Industrial Engine
Stamford Generator End
Switchable Voltage
Fork Pockets
E-Stop
Single Point Lifting Eye
Oil Field Skid
Cam-Lock Receptacles
Solar Battery Charger
Specifications
| Watts - Standby | 120/240V 1-Ph: 22,000120/208V 3-Ph: 23,000277/480V 3-Ph: 23,000 |
| Watts - Prime | 120/240V 1-Ph: 20,000120/208V 3-Ph: 21,000277/480V 3-Ph: 21,000 |
| Amps - Standby | 120/240V 1-Ph: 91120/208V 3-Ph: 80277/480V 3-Ph: 34 |
| Amps - Prime | 120/240V 1-Ph: 83120/208V 3-Ph: 73277/480V 3-Ph: 31 |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| Fuel | Diesel |
| Emissions | CARB/California, EPA Prime, EPA Standby |
| Dimensions | 150" x 71" x 88" |
| Weight | 4,300 lbs |
| Unit Warranty | 1 Year/2,000 Hours |
| Assembled in | USA |
