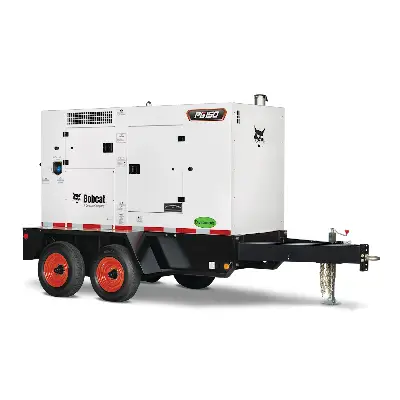

Cool and quiet, the Bobcat PG150 portable generator delivers ruggedly reliable power even in the most challenging working conditions.
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
154 kVA (123 kW) output at 69 dB(A)
Powered by a Cummins QSB5-G12 engine
Optional Tundra Package engineered for extreme cold
Designed for easy serviceability on the jobsite
| Weight | 6990 lbs |
|---|---|
| Dimensions | 169.9 × 71.3 × 94.9 in |
| Manufacturer | Bobcat / Doosan |
| MPN | PG150 |
| Capability | Sell, Service |
| Cooling System | Liquid Cooled |
| Frequency Hz | 50/60 |
| Fuel Tank Run Time (hrs) | 18 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg150 |
| Product Applications | Commercial / Industrial Power, Hurricane and Storms |
| Gen/Power Rating | Prime / Continuous |
| Housing | Closed |
| kW | 123 |
| Phase AC | Varies |
| Power Type | Conventional |
| Product Actual Height (in) | 94.9 |
| Product Actual Length (in) | 169.9 |
| Product Actual Weight (lbs) | 6990 |
| Product Actual Width (in) | 71.3 |
| Voltage VAC | Varies |
| Fuel Tank Size (gal) | 171.6 |
| Rated Amps | 433 |
| Watts | 123000 |
| kVA | 150 |
| VA | 150000 |
PRIME POWER RATING
| @ 480V-3Ø, 0.8PF, 60Hz | 154 kVA (123 kW ), 186 Amps |
| @ 240V-3Ø, 0.8PF, 60Hz | 154 kVA (123 kW ), 371 Amps |
| @ 208V-3Ø, 0.8PF, 60Hz | 148 kVA (118 kW ), 411 Amps |
| @ 240V-1Ø, 1.0PF, 60Hz | 104 kVA (104 kW), 433 Amps |
| @ 120V-1Ø, 1.0PF, 60Hz | 104 kVA (104 kW), 433 × 2 Amps |
| @ 400V-3Ø, 0.8PF, 50Hz | 132 kVA (106 kW ), 191 Amps |
| Voltage Configuration | 3-Position Switch |
| Frequency Capability | 50Hz/60Hz Switchable |
ENGINE
| Engine Make / Model | Cummins QSB5-G12 |
| Power Output @ 1800RPM – HP (kWm) | 186 (139) |
| Emissions Tier Level | Tier 4 Final |
| Fuel Tank Capacity – Gal (L) | 176.5 (668) |
| Runtime @ 100% Load – Hr | 20.1 |
DIMENSIONS WITH RUNNING GEAR
| Length – in (mm) | 171 (4343) |
| Width – in (mm) | 72.5 (1841) |
| Height – in (mm) | 91.0 (2311) |
| Weight (Ready to Run) – lb (kg) | 7040 (3193) |
| Sound Level @ 23 ft (7m) and 100% Load – dB(A) | 69 |
