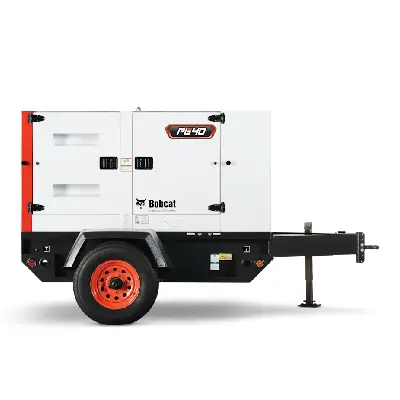

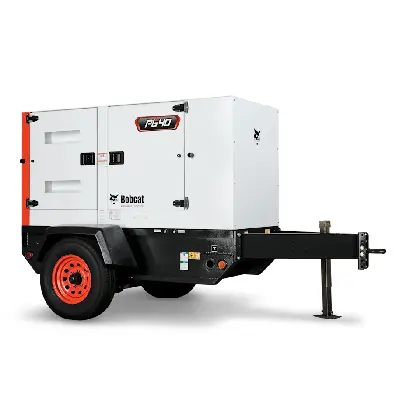

The Bobcat® PG40 portable generator offers outstanding motor starting capability, the best low-load operating range in the industry and simple serviceability.
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
39 kVA (31 kW) power output at just 64 dB(A)
Ideal for rental, construction, events and disaster recovery applications
Engineered to perform in the harshest conditions
Easy-to-read analog gauges for at-a-glance monitoring
Industry-leading serviceability for maximum uptime
| Weight | 3826 lbs |
|---|---|
| Dimensions | 130.5 × 68.3 × 76.6 in |
| Manufacturer | Bobcat / Doosan |
| MPN | PG40 |
| Capability | Sell, Service |
| Cooling System | Liquid Cooled |
| Frequency Hz | 50/60 |
| Fuel Tank Run Time (hrs) | 33 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg40 |
| Product Applications | Commercial / Industrial Power, Hurricane and Storms |
| Gen/Power Rating | Prime / Continuous |
| Housing | Closed |
| kW | 31 |
| Phase AC | Varies |
| Power Type | Conventional |
| Product Actual Height (in) | 76.6 |
| Product Actual Length (in) | 130.5 |
| Product Actual Weight (lbs) | 3826 |
| Product Actual Width (in) | 68.3 |
| Voltage VAC | Varies |
| Fuel Tank Size (gal) | 102 |
| Rated Amps | 127 |
| Watts | 32000 |
| kVA | 40 |
| VA | 40000 |
PRIME POWER RATING
| @ 480V-3Ø, 0.8PF, 60Hz | 39 kVA (31 kW), 47 Amps |
| @ 240V-3Ø, 0.8PF, 60Hz | 39 kVA (31 kW), 93 Amps |
| @ 208V-3Ø, 0.8PF, 60Hz | 39 kVA (31 kW), 106 Amps |
| @ 240V-1Ø, 1.0PF, 60Hz | 32 kVA (32 kW), 134 Amps |
| @ 120V-1Ø, 1.0PF, 60Hz | 32 kVA (32 kW), 134×2 Amps |
| @ 400V-3Ø, 0.8PF, 50Hz | 31 kVA (25 kW), 45 Amps |
| Voltage Configuration | 3-Position Switch |
| Frequency Capability | 50Hz/60Hz Switchable |
ENGINE
| Engine Make / Model | Doosan D24 |
| Displacement (L) | 2.392 |
| Number of Cylinders | 4 |
| Power Output @ 1800RPM – HP (kWm) | 48.8 (36) |
| Emissions Tier Level | Tier 4 Final |
| Aftertreatment Technology | DOC |
| Fuel Tank Capacity – Gal (L) | 110 (416) |
| Diesel Exhaust Fluid (DEF) Capacity – Gal (L) | N/A |
| Runtime @ 100% Load – Hr | 44.9 |
DIMENSIONS WITH RUNNING GEAR
| Length – in (mm) | 130.5 (3315) |
| Width – in (mm) | 72.8 (1850) |
| Height – in (mm) | 78.4 (1992) |
| Weight (Ready to Run) – lb (kg) | 3870 (1755) |
| Sound Level @ 23 ft (7m) and 100% Load – dB(A) | 64 |
