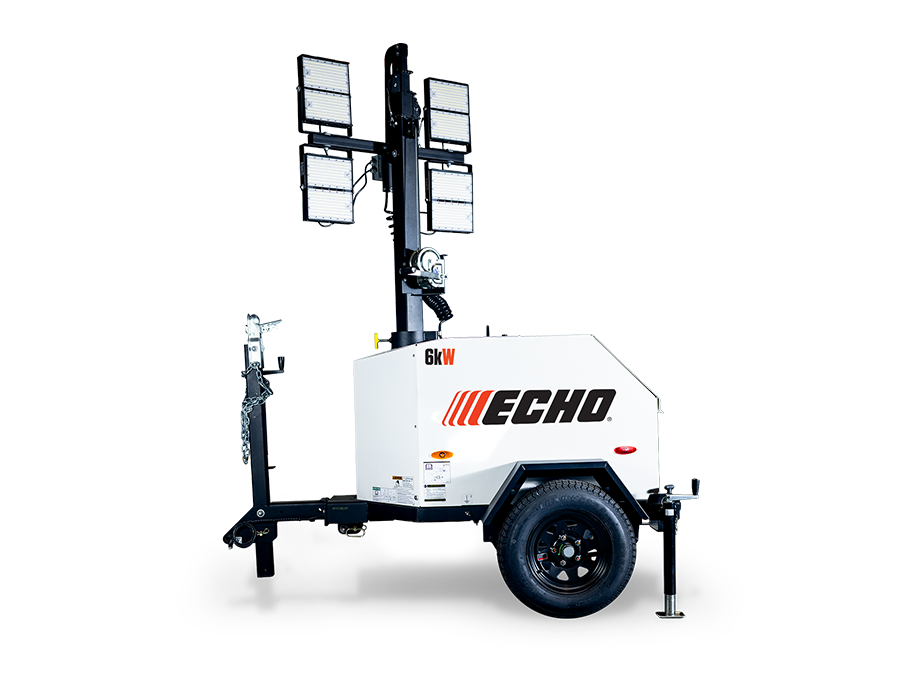

Echo DLT6 Light Tower
Echo DLT6 LED light tower — LED 4 x 320W at 217,600 lm, 22.20 ft. mast, Kubota D-1105 Diesel, 130 hr runtime on 45 gal.
The ECHO DLT6 is a mobile LED light tower with four 320 W lamps putting out 217,600 lumens, on a vertical mast reaching 22.20 ft (6.77 m) with a self-braking winch and 359° rotation. It runs a Kubota D-1105 diesel driving a brushless 6.0 kW generator, so it is a work light and a small power source in the same trailer.
Altitude
ECHO does not publish a derate figure for the light towers. The engine is a naturally aspirated Kubota, and naturally aspirated diesels do lose output as air thins — which matters more here than it looks, because the lamps are a fixed load and what gets squeezed is the spare capacity you were counting on for tools. Tell us the site elevation and we will confirm what is actually left at the receptacles before you order.
Options. Auto start, cold weather kit and the Electric Lift-E mast are factory options ordered with the unit.
Specifications
| Lamps | LED 4 x 320W |
| Light output | 217,600 lm |
| Mast height | 22.20 ft. (6.77 m) |
| Generator | 6.0 kW brushless, 60 Hz |
| Available power (lights on) | 4.70 kW (with lights on) |
| Receptacles | (1) GFI duplex 20A / 120V, (1) twist-lock 30A / 240V |
| Engine | Kubota D-1105 Diesel |
| Fuel capacity | 45 gal (170 L) |
| Runtime (lights on) | 130 hours |
| Dimensions (stowed) | 85.00" L x 59.00" W x 97.00" H |
| Width — deployed | 128.00 in. (325.12 cm) |
| Width — operating | 136.00 in. (345.44 cm) |
| Length — overall | 116.00 in. (294.64 cm) |
| Cabinet height | 48.00 in. (121.92 cm) |
| Track width | 49.00 in. (124.46 cm) |
| Wheel size | 13.00 in. (33.02 cm) |
| Axle rating | 2,200 lbs (997.90 kg) |
| Tongue weight (travel) | 210 lbs (95.25 kg) |
| Gross weight (no fuel) | 1,600 lbs |
| Units per 53' flatbed | 17 |
Features and specifications
- Light. 4 x 320 W LED, 217,600 lm total, on a 22.20 ft (6.77 m) mast with 359° rotation.
- Power to spare. 6.0 kW brushless 60 Hz generator, with 4.70 kW still available with the lights on. Receptacles: one GFI duplex 20 A / 120 V and one twist-lock 30 A / 240 V.
- Run time. 130 hours on 45 gal (170 L) — long enough that refuelling is a weekly errand, not a daily one.
- Engine. Kubota D-1105 diesel.
- Shore power standard. Runs on 120 V grid power with the engine off, which saves hours and fuel wherever there is a drop.
- Trailer. Stowed 85.00" x 59.00" x 97.00", 1,600 lb gross without fuel, 13 in wheels on a 2,200 lb axle. All-steel construction.
Built for the jobsite
Every Echo light tower carries the same lighting package -- four 320W LED fixtures putting out 217,600 lumens -- so the choice between models is about generator capacity and runtime, not brightness. Heavy-gauge steel covers open fully for service, a manual self-braking winch with mast brake and 359° rotation places the light precisely, and shore power is standard on every unit so the tower can run on 120V AC 15A without starting the engine. High-water-temperature and low-oil auto shutdown protect the engine, and DOT-approved running, stop and turn lights keep it road legal.
Available accessories
- Auto start with sunrise/sunset settings
- Electric lift
- 800 CCA battery
- Engine block heater for cold weather starts
