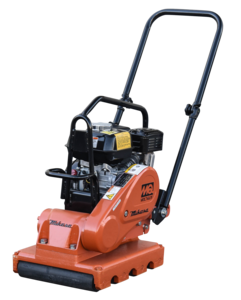

Multiquip MQ MVB85H Plate-Roller Honda GX120 15" wide
Overview
The Multiquip Mikasa MVB85H paver plate compactor uses a hard rubber roller to compact and set pavers without scratching, chipping, or dragging. It generates 2,270 lbf (10.1 kN) of centrifugal force at 5,600 VPM.
- Hard rubber roller protects pavers from scratching, chipping and breaking
- Ideal for narrow areas and compaction alongside walls
- Toolless foldable handle for quick loading into vans and trucks
- Rollers allow easy pull-back to compact on the spot
- Greatly improves productivity versus standard plate compactors
Technical Specifications
| Centrifugal Force | 2,270 lbf (10.1 kN) |
| Exciter Speed | 5,600 VPM |
| Plate Size | 12.60 x 17.05 in (320 x 433 mm) |
| Rubber Roller Diameter | 2.9 in (73 mm) |
| Engine | Honda GX120 |
| Rated Power | 3.5 HP (2.6 kW) |
| Operating Weight | 203 lb (92 kg) |
Specifications
| # of Rollers | 4 |
| Roller Diameter | 2.9 in / 73.66 mm |
| Centrifugal Force | 2270 lbf / 10.1 kN |
| Exciter Speed | 5600 VPM |
| Plate Size | 12.6 x 17.05 in / 320 x 433 mm |
| Max Forward Speed / Per Min. | 82 ft / 25 m |
Dimensions & Weights
| Overall Length | 35.04 in / 890 mm |
| Overall Width | 14.8 in / 376 mm |
| Overall Height | 36.14 in / 918 mm |
| Shipping Dimensions | 25 x 15 x 26 in / 635 x 381 x 660 mm |
| Operating Weight | 198 lb / 90 kg |
| Shipping Weight | 208 lb / 95 kg |
Features and specifications are subject to change without notice.
