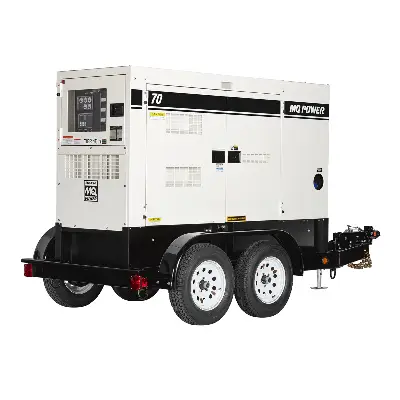

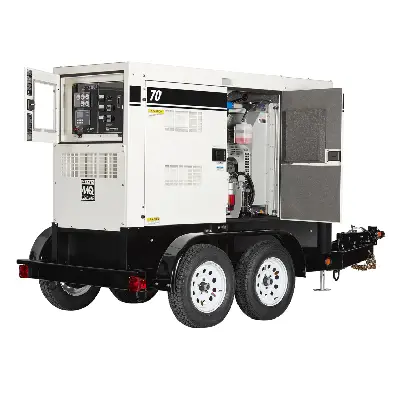

MQ WhisperWatt Super-Silent Diesel Generator 56kW Single/Three-Phase Isuzu Engine DCA70SSIU4F

The DCA70SSIU4F offers a prime rating of 56 kW (70 kVA) and a standby rating of 62 kW (77 kVA)

Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location.

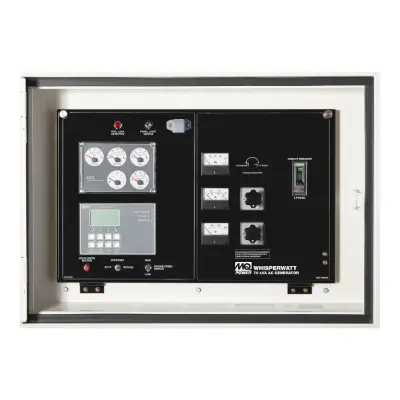

The unit features a powder-coated / e-coated, weatherproof steel housing that allows a substantially low operating noise level of 65 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.

• Heavy duty, 4-cycle, direct injection, heated crankcase vent, turbocharged, charge air cooled, 1000W block heater, diesel engine provides maximum
• EPA emissions certified – Tier 4 Final emissions
• Microprocessor engine control system maintains frequency to

±0.25%.

• Fuel/water separator removes condensation from fuel for extended engine life. Panel-mounted alarm light included.
• Sound attenuated, weather resistant, steel housing provides operation at 65 dB(A) at 23 Fully lockable enclosure allows safe unattended operation.
• E-coat and powder coat paint provide durability and weather
• Internal fuel tank with direct reading fuel
• Spill containment – Bunded design protects environment by

capturing up to 128% of engine fluids.

• Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class H insulation
  • Open delta alternator design provides virtually unlimited excitation for maximum motor starting capability.
  • Automatic voltage regulator (AVR) provides precise
• Fully covered power Three-phase terminals and single phase

receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.

• ECU845 microprocessor-based digital generator
  • Remote 2-wire start/stop
  • High visibility LCD display with heated screen and alphanumeric
  • Operational temperature range of -40° to 85°
  • AC monitoring along with fuel and DEF level
• Digital engine gauges including oil pressure, water temperature, battery volts, engine speed, fuel level and DEF level.
• Analog generator instrumentation including AC ammeter, AC voltmeter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch, and voltage regulator adjustment
• Automatic safety shutdown system monitors the water temperature, engine oil pressure, overspeed, and over crank. Warning lights indicate abnormal
• Voltage selector switch offers the operator a wide range of voltages that are manually selectable. Fine tuning of the output voltage can be accomplished by adjusting the voltage regulator control knob to obtain the desired
• Emergency Stop Switch — when manually activated, shuts down generator in the event of an emergency.
