Gillette 1000kW Diesel Standby Generator with Mitsubishi Engine SPMI-1M

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 302639 Category: Commercial / Industrial

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Description

Gillette 1000kW Diesel Standby Generator with Mitsubishi Engine SPMI-1M

All generator sets are USA prototype built and thoroughly tested.Â Production models are USA factory built and 100% load tested.
All generator sets meet NFPA-110. Level 1, when equipped with the necessary accessories and installed per NFPA standards.
All generators are UL-1446 & UL2200
Solid state, frequency compensated voltage regulation is standard.
Electronic engine governor for precise isochronous frequency regulation.
Deepsea 7420 MK2 digital controller allows programming to basic engine functions in the field. Controller has stop-manual-auto mode and engine shutdowns, signaled by full text LCD indicators.
Heavy Duty 100%-125% rated Circuit Breaker is standard on all gen-sets.
All generator set control systems components and accessories provide a 1-year limited warranty at time of initial start-up. Generators and engines are governed by separate warranties.

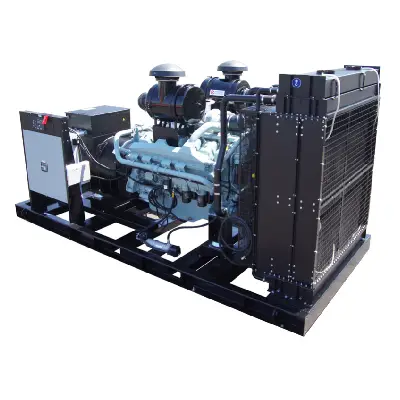

â€œOPENâ€ Generator Sets:Â There is no enclosure, so gen-set must be placed within a weather protected area, un-inhabited by humans or animals, with proper ventilation.Â Â Silencer is not supplied, as installation requirements are not known. However, this item is available as optional equipment.

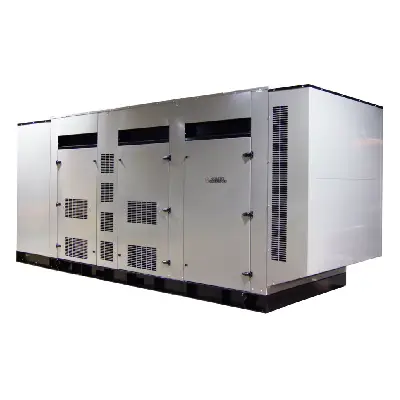

LEVEL 2â€ Aluminum Housing:Â Full weather protection and superior sound attenuation for specific low noise applications.Â Critical grade silencer is standard.

Additional information

Manufacturer	Gillette
Certification	UL
Cooling System	Liquid Cooled
Frequency Hz	60
Fuel Type	Diesel
Manufacturers Website Link	https://gillettegenerators.com/generators/standby/industrial-diesel/spmi-1m/
Product Applications	Commercial / Industrial Power
MPN	SPMI-1M
Capability	Install, Sell, Service
Gen/Power Rating	Standby / Intermittent
Housing	Closed
Phase AC	3PH
Power Type	Conventional
Voltage VAC	Varies

Reviews

There are no reviews yet.

Be the first to review “Gillette 1000kW Diesel Standby Generator with Mitsubishi Engine SPMI-1M”

SPECIAL-ADDITIONAL-FEATURES-FOR-1800-RPM-2020

CONTROLLER-UPGRADES-2020

Downloads

Gillette SPMI-1M 1000W Diesel Standby Generator Spec Sheet

Tech Notes

OPEN UNITS: EQUIPPED WITH MANIFOLD/TURBO EXHAUST PIPE, FLEX CONNECTOR, AND CLAMPS

LEVEL 2: SOUND ABSORBING FOAM WITH 4 LB. DENSITY THROUGHOUT HOUSING INTERIOR AND INCLUDES AIR DAMS, GENERATOR END AIR DUCT (80KW THRU 1000KW ONLY), AND “CRITICAL” GRADE SILENCER. VOLTAGE SUFFIX NUMBER CODES. SUFFIX #1-1 = 1 PHASE—120/240

VOLTS; SUFFIX #3-2 = 3 PHASE 120/208 VOLTS; SUFFIX #3-3 = 3 PHASE—120/240 VOLTS; SUFFIX #3-4 = 3 PHASE—277/480 VOLTS, SUFFIX #3-16 = 3 PHASE-600 VOLT.

SP, SPJD, SPVD, AND SPMI STANDBY GEN-SET STANDARD ACCESSORIES INCLUDE: 12/24VDC “FLOAT” BATTERY CHARGER, SILENCER, FLEXIBLE OIL AND RADIATOR DRAIN HOSE, PROGRAMMABLE DIGITAL CONTROLLER, BATTERY TRAY AND CABLES, AND CIRCUIT BREAKER (SILENCER NOT INCLUDED FOR OPEN UNITS).
