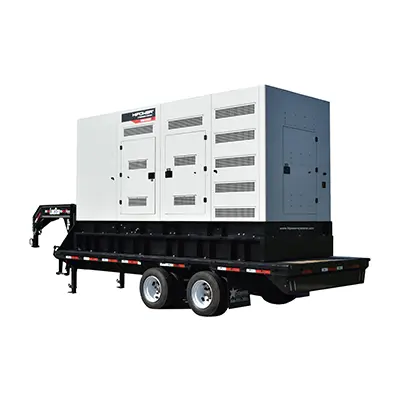

HiPower 625kVA Towable Diesel Generator Three Phase HRVW 625 T4F

HiPower HRVW 625 T4F generator is an efficient, reliable and versatile source of mobile electrical power. Designed to operate in the most extreme working conditions.

Request Quote

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

questions? Call US

(866) 888 6111

SKU: 311260 Category:

Accessories

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Loading...

Description

HiPower 625kVA Towable Diesel Generator Three Phase HRVW 625 T4F generator is an efficient, reliable and versatile source of mobile electrical power. Designed to operate in the most extreme working conditions. All HIPOWER®Mobile Generators combine an innovative design and the use of high quality materials that provide the user with the most dependable power that you can rely on for non-stop power with easy to operate controls. Powered by a radiator-cooled, industrial VOLVO PENTA Diesel engine, which meets current Environmental Protection Agency (EPA) TIER 4 Final non-road exhaust emission regulations, driving a single bearing, four-pole, three-phase alternator, with IP23 protection. The Prime Power kVA rating for generator set is given with a 105 degree o C alternator winding temperature rise.

VOLVO PENTA Diesel Engine: Long-life, heavy-duty, 4-cycle, direct injection engine for economy of operation and maximum reliability and durability. Capable of full rated load acceptance in one step.

Cooling: Radiator with belt driven pusher fan.

Air Filter: Heavy-duty replaceable element air-cleaner.

Alternator: Single bearing, rotating fi eld, self-excited, self-ventilated, 12-wire reconnectable, 60Hz brushless alternator with permanent magnetic generator (PMG), with Class F insulation. Automatic voltage regulator (AVR) providing close voltage regulation and skVA starting capability for electric motor loads.

Certification: ISO 8528-5.

Fuel Tank: Environmentally friendly steel base welded sub-base fuel tank with internal filling system and 110% containment capability for any diesel fuel, coolant or engine oil spills. Easy access for maintenance activities.

Enclosure: Fully sound attenuated enclosure, fabricated in 11-gauge steel, powder coated with finish that exceeds 1400-hr salt spray test, curved edges, minimum outside fasteners and single point lift. Ample layer of durable Rockwool sound insulating material placed all around the inside of the container, doors and ducting with metal retaining frames. It can be cleaned with high-pressure water and is oil and fi re resistant. Vertical air discharge for quiet operation. Wide steel lockable access doors with rubber seals, easy access for maintenance and service activities, lift off stainless steel hinges, corrosion resistant hardware and fasteners.

Fuel Filtration: Standard and secondary water separator with visible level on fuel filters.

Voltage Change Over Board: Two-position, manual change over board. 120/208 and 277/480V 3-phase.

Controls: Digital control panel with manual and automatic start and stop features. Many programmable automatic functions for local and remote controls with LED lights, tamper proof engine hour recorder. Load Connections: Covered distribution panel for easy access to cable power outlets, receptacles, lugs and Camloks.

Additional information

Manufacturer

HiPower

MPN

HRVW-625 T4F

Capability

Sell, Service

Cooling System

Liquid Cooled

Frequency Hz

60

Fuel Type

Diesel

Product Applications

Commercial / Industrial Power, Hurricane and Storms

Gen/Power Rating

Prime / Continuous

Housing

Closed

Power Type

Conventional

Reviews

There are no reviews yet.

Be the first to review “HiPower 625kVA Towable Diesel Generator Three Phase HRVW 625 T4F”

Your email address will not be published. Required fields are marked *

Tech Notes

Prime kW 500

Voltage 480/277

Amp capacity @480V 752

Engine Make VOLVO PENTA

Engine Model TWD1672GE
