Description

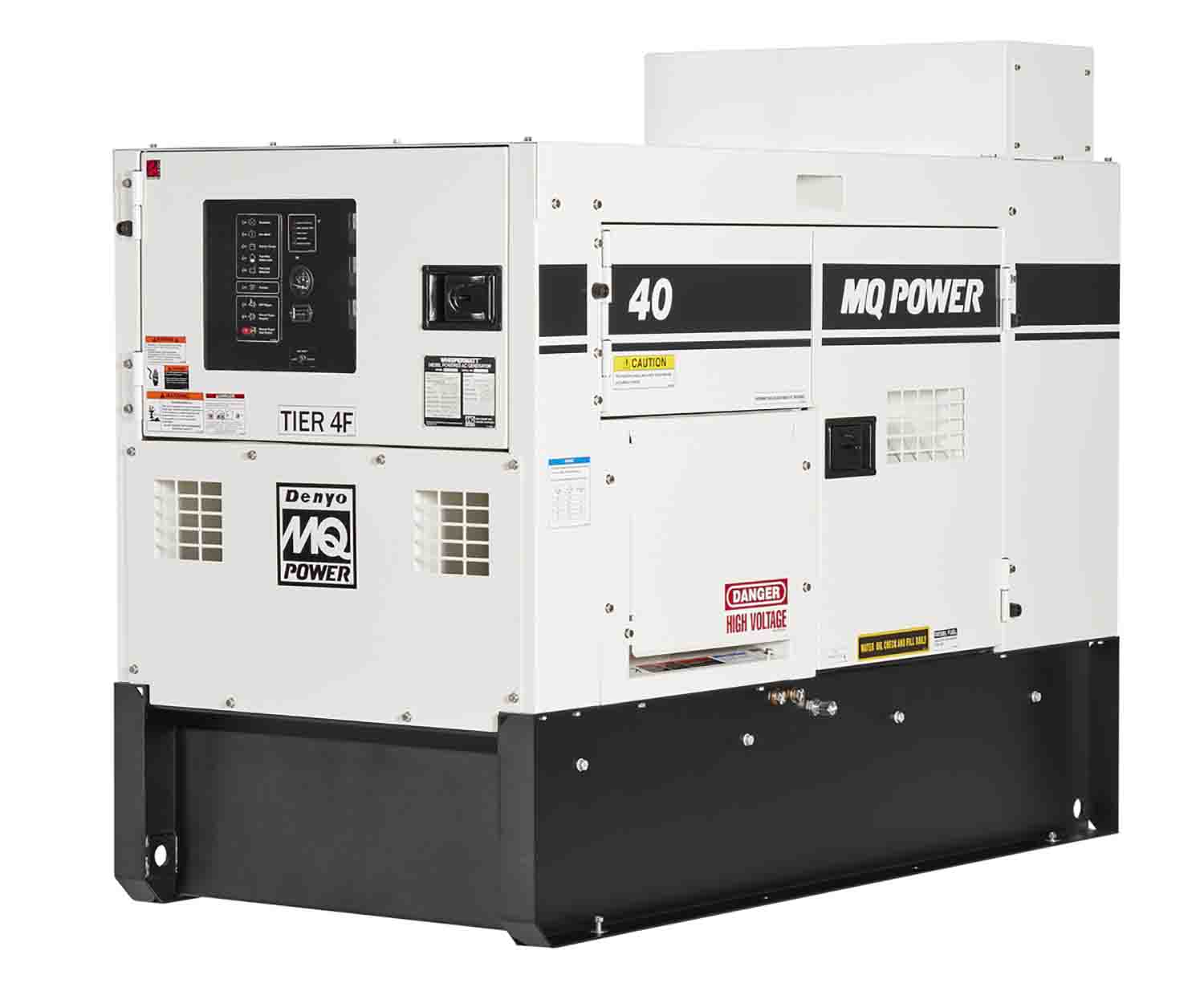

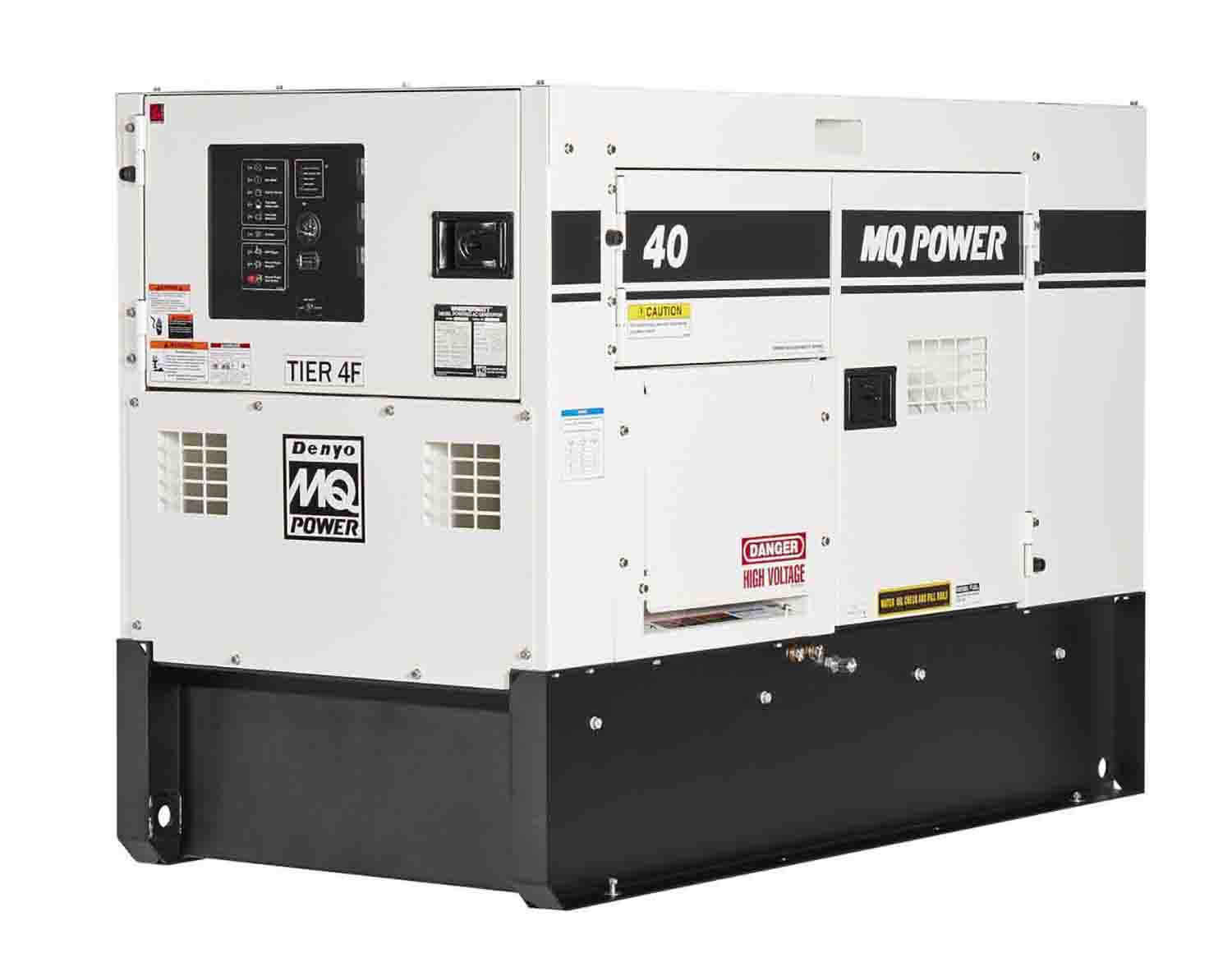

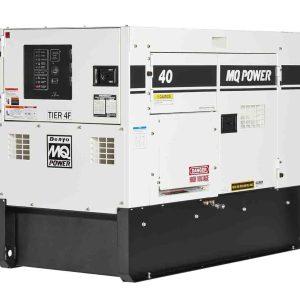

The DCA40SSKU4F2 offers a prime rating of 28.8 kW (36 kVA) and a standby rating of30.2 kW (27.8 kVA).
Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location.
The unit features a powder-coated, weatherproof steel housing that allows a substantially low operating noise level of 63 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.
- Heavy duty, 4-cycle, direct injection, turbocharged, diesel engine provides maximum
- Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class H insulation
- Open delta excitation design provides virtually unlimited excitation for maximum motor starting
- Automatic voltage regulator (AVR) provides precise regulation.
- Electronic Governor Control —maintains frequency to within
±0.25% from no load to full load.
- Full load acceptance of standby nameplate rating in one step (NFPA 110, para 5-13.2.6).
- Sound attenuated, weather resistant, steel housing provides operation at 63 dB(A) at 23 Fully lockable enclosure allows safe unattended operation.
- Internal fuel tank with direct reading of fuel
- E-coat and powder-coat paint system provides durability and weather
- Fuel/water separator removes condensation from fuel for extended engine Panel mounted alarm light included.
- Complete engine analog instrumentation includes fuel level gauge, hour meter, preheat indicator, and emergency shutdown
- Automatic Start/Stop Control — automatically starts the generator set during a commercial power failure when used in conjunction with a transfer
- Complete generator analog instrumentation includes voltage regulator control, ammeter phase selector switch, AC voltmeter, AC ammeter, frequency meter, and circuit
- Automatic safety shutdown system monitors the water temperature, engine oil pressure, overspeed and over crank. Warning lights indicate abnormal
- Complete power Fully covered; three-phase terminals and single-phase receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. The GFCI receptacles are NEMA 5-20, and the auxiliary outputs use CS6369 twist- lock receptacles.
- Simultaneous single and three-phase
- Voltage selector switch offers the operator a wide range of voltages that are manually Fine tuning of the output voltage can be accomplished by adjusting the voltage regulator control knob to obtain the desired voltage.
- EPA emissions certified Tier 4 final emissions
- Engine fitted with
- Spill containment —bunded design protects environment by capturing up to 132% of engine
- Emergency Stop Switch — when manually activated, shuts down generator in the event of an emergency.
