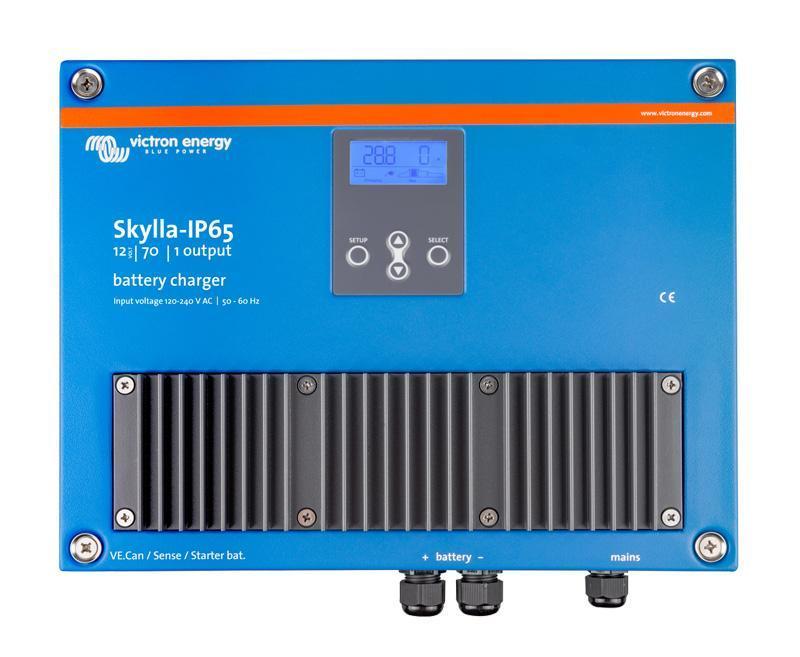

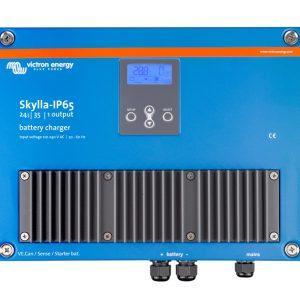

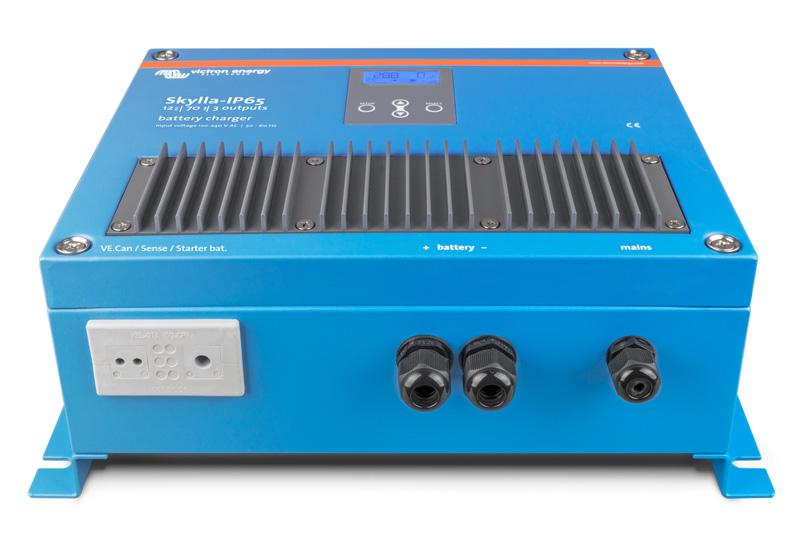

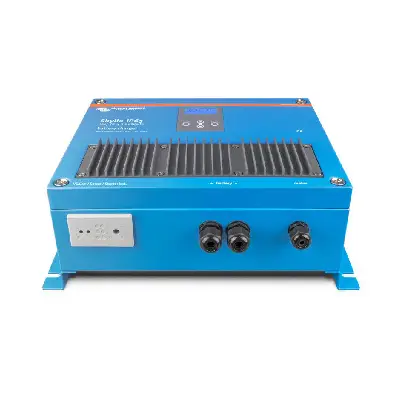

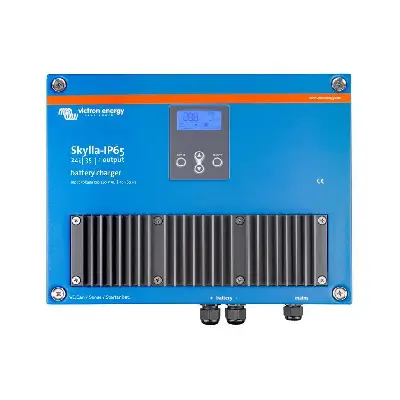

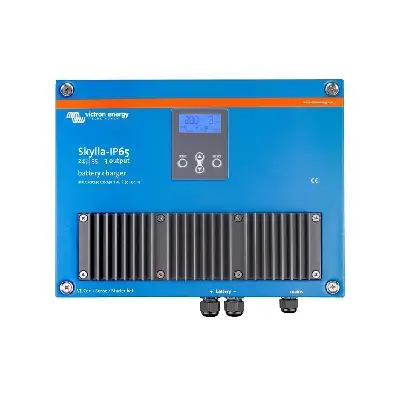

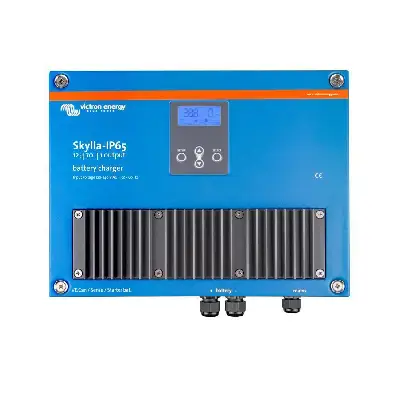

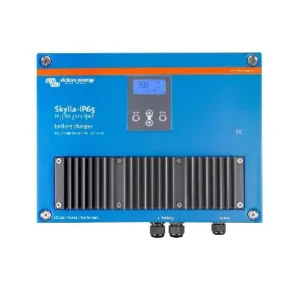

Victron Energy Skylla-IP65 12/70(1+1) 120-240V Battery Charger SKY012070000

Victron Skylla-IP65 12/70(1+1) 120-240V SKY012070000

A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.

The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.

The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.

FREE SHIPPING OVER $500

Ships Factory Direct

$759.05

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 303229 Category: Chargers

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Description

Victron Skylla-IP65 12/70(1+1) 120-240V SKY012070000

The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.

The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.

Additional information

Weight	17.64 lbs
Dimensions	10.4 × 18.3 × 3 in
Manufacturer	Victron
Capability	Install, Sell, Service
MPN	SKY012070000
Enclosure Rating	IP65
Frequency Hz	50/60
Product Applications	Off-Grid, RV / Food Truck / Mobile

Reviews

There are no reviews yet.

Be the first to review “Victron Energy Skylla-IP65 12/70(1+1) 120-240V Battery Charger SKY012070000”

Downloads

Victron Skylla-IP65 12/70(1+1)

Tech Notes

Input voltage (VAC)	120/230 V
Input voltage range (VAC)	90-265 V
Maximum AC input current @ 100 VAC	12 A
Frequency	45-65 Hz
Power factor	0,98
Charge voltage ‘absorption’ (1)	14,4 V
Charge voltage ‘float’	13,8 V
Charge voltage ‘storage’	13,2 V
Charge current (2)	70 A
Charge current starter batt. (A)	3 A
Charge algorithm	7 stage adaptive
Battery capacity	350-700 Ah
Charge algorithm, Li-Ion	3 stage, with on-off control or CAN-bus contro
Temperature sensor	Yes
Can be used as power supply	Yes
Remote on-off port	Yes (can be connected to a Li-Ion BMS)
CAN-bus communication port (VE.Can)	Two RJ45 connectors, NMEA2000 protocol, not isolated
Synchronised parallel operation	Yes, with VE.Can
Alarm relay	DPST AC rating: 240 VAC/4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Forced cooling	Yes (internal air circulation)
Protection	Battery reverse polarity (fuse)
Operating temp. range	-20 to 60 °C (Full output current up to 40 °C)
Humidity (non-condensing)	max 95 %

ENCLOSURE

Material & Colour	Steel (blue RAL 5012
Battery-connection	M6 bolts
230 VAC-connection	screw-clamp 6mm² (AWG 10)
Protection category	IP65
Weight	6 kg (14 lbs)
Dimensions (hxwxd) Inches	16 x 10.5 x 6 Inch
